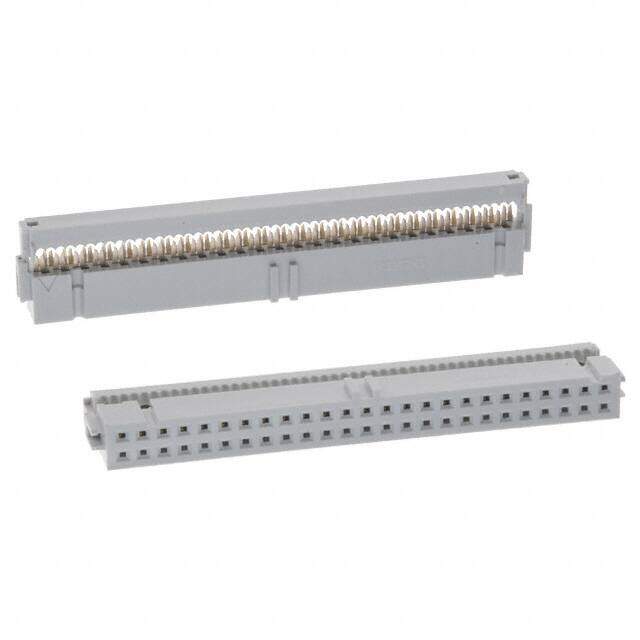

71600-150LF

Amphenol ICC (FCI)
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Quickie? Tube
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3816
≥1 USD $1.3816
≥10 USD $1.2012
≥100 USD $1.150054
≥500 USD $1.124358
≥1000 USD $1.073266
≥3000 USD $0.971062
Inventory: 1395
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Width 6.1mm
Length 67.97mm

Technical

Wire Type Ribbon Cable
Contact Current Rating 1A
Cable Termination IDC
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 30 AWG
Wire/Cable Type Ribbon
Max Voltage Rating (AC) 1kV
Row Spacing 0.100 (2.54mm)
Wire Gauge 28-30 AWG
Contact Resistance 15mOhm
Housing Color Grey
Number of Contacts 50
Lead Pitch 2.54mm
Contact Finish Gold
Depth 7.1mm
Orientation Right Angle
Pitch 0.100 2.54mm
Contact Type Female Socket
Gender Female
Number of Rows 2
Color Gray
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 50
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series Quickie?
Packaging Tube

Physical

Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material Bronze

Supply Chain

Factory Lead Time 8 Weeks
