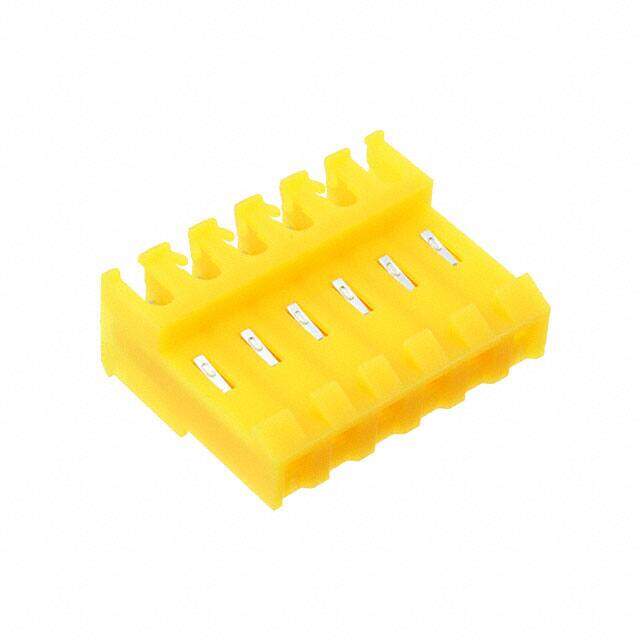

MTD-B-06-B-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Rectangular Connector Panel Mount
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.276
≥1 USD $1.276
≥10 USD $1.078
≥100 USD $1.033824
≥500 USD $1.011824
≥1000 USD $0.967912
≥3000 USD $0.87993
Inventory: 534
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Contact Design STAMPED
Wire Type Discrete or Ribbon Cable
Withdrawl Force-Min 5.7824 N
Insertion Force-Max 5.7824 N
Cable Termination IDC
Termination Type IDC
Wire Gauge 20 AWG
Rated Current (Signal) 6A
Body Depth 0.772 inch
Empty Shell NO
UL Flammability Code 94V-2
Operating Temperature (Min) -40°C
Contact Finish Tin
Reference Standard CSA,CUL,UL
Number of Conductors ONE
Total Number of Contacts 6
Pitch 0.156 3.96mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Locking Ramp
Number of Rows 1
Color Yellow
Number of Positions 6
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
JESD-609 Code e3
Series MTD
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line), Right Angle
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 9 Weeks
