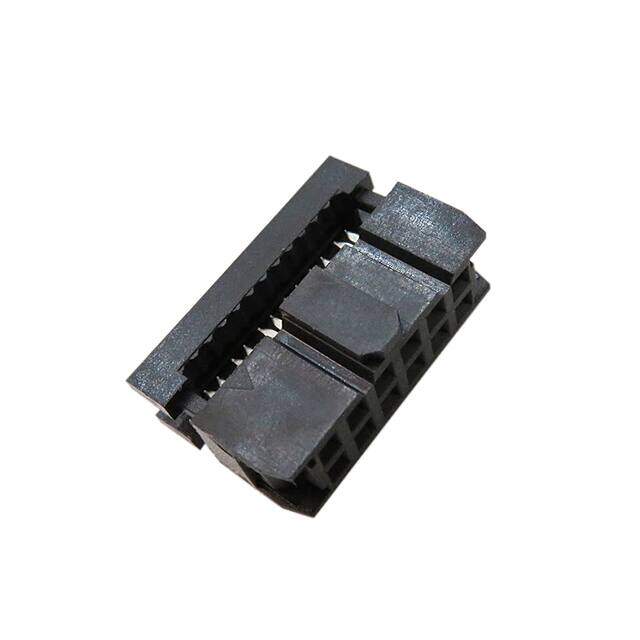

FCS-12-SG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
SOCKET FLAT CABLE IDC 12P 2.54MM
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.36344
≥100 USD $0.33264
≥500 USD $0.31284
≥1000 USD $0.299913
≥3000 USD $0.273821
Inventory: 2400
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness Flash
Technical
Wire Size (Min) 30 AWG
Wire Type Ribbon Cable
Withdrawl Force-Min .1946 N
Cable Termination IDC
Durability 500 Cycles
Dielectric Withstanding Voltage 500VAC V
Termination Type IDC
Row Spacing 0.100 (2.54mm)
Insulation Resistance 3000000000Ohm
Rated Current (Signal) 1A
Operating Temperature (Min) -40°C
Body Breadth 0.157 inch
Operating Temperature (Max) 105°C
Body Length or Diameter 0.677 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL, CSA
Total Number of Contacts 12
Pitch 0.100 2.54mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Color Black
Number of Positions 12
Connector Type Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series FCS
Packaging Tray
Physical
Mounting Option 1 LOCKING
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Type Free Hanging (In-Line)
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 9 Weeks
