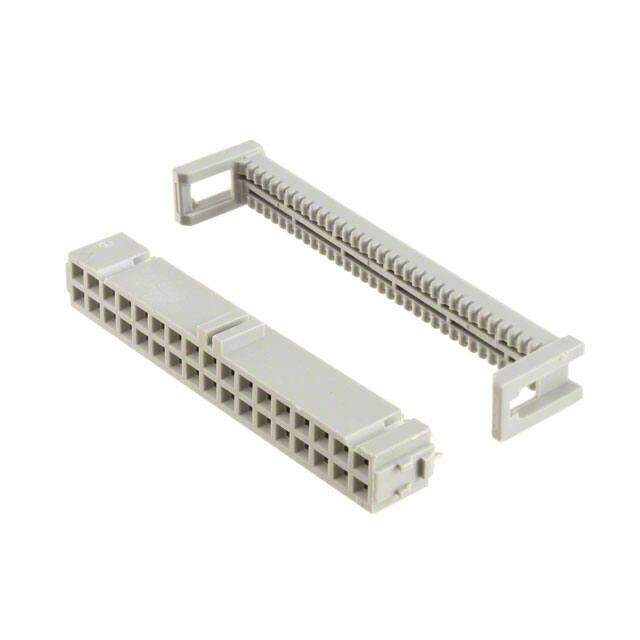

D89134-0101HK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Conn; Cable Socket; 34 Pos; CB; Preassembled; IDC Ribbon Cable/D89 Ser; Gold Plate
PDF
/
Buying Options
Total Price: USD $2.12
Unit Price: USD $2.1208
≥1 USD $2.1208
≥10 USD $1.84448
≥100 USD $1.765984
≥500 USD $1.726736
≥1000 USD $1.648328
≥3000 USD $1.49131
Inventory: 2720
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene
Technical
Packaging Tube
Published 2009
Series D89
Feature Feed Through, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 34
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Gray
Number of Rows 2
Voltage - Rated 1kV
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Straight
Depth 7.6mm
Current Rating 1A
Contact Finish Gold
Contact Gender Female
Housing Color Grey
Wire Gauge 26-28 AWG
Row Spacing 0.100 (2.54mm)
Max Current Rating 1.25A
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Wire Type Ribbon Cable
Dimensions
Length 47.8mm
Contact Finish Thickness 15.0μin 0.38μm
Compliance
RoHS Status RoHS Compliant
