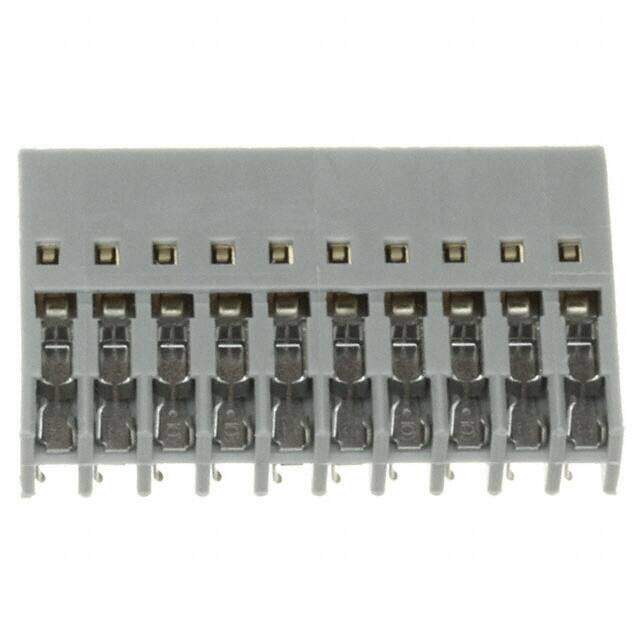

CHG-2020-001010-KCP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 20P IDC 26-28AWG GOLD
PDF
/
Inventory: 9514
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Plastic
Weight 453.59237g
Technical
Packaging Bulk
Published 2009
Series CHG
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 20
Color Gray
Number of Rows 2
Gender Female
Contact Type Female Socket
Pitch 0.100 2.54mm
Contact Finish Gold
Contact Gender Female
Housing Color Grey
Wire Gauge 26-28 AWG
Row Spacing 0.100 (2.54mm)
Wire/Cable Type Discrete
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
