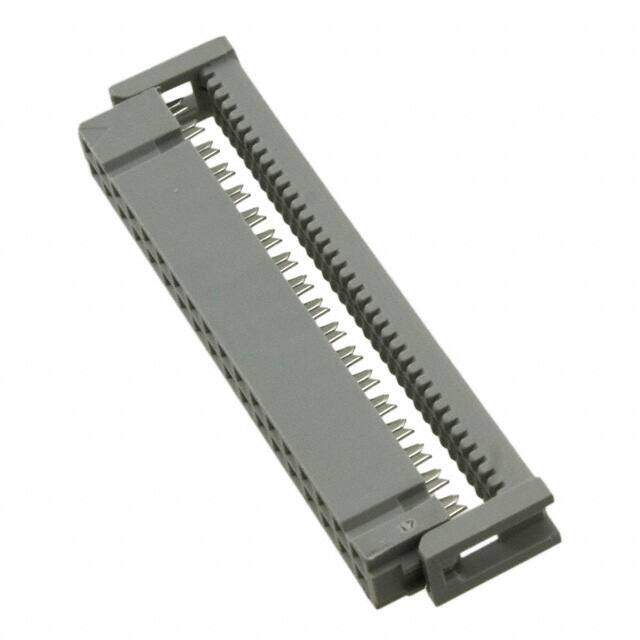

89136-0001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 36P IDC 26-28AWG GOLD
PDF
/
Inventory: 4019
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Width 6.1mm
Length 50.3mm
Height 10.6mm
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Row Spacing 0.100 (2.54mm)
Wire Gauge 26-28 AWG
Housing Color Grey
Number of Contacts 36
Contact Finish Gold
Pitch 0.100 2.54mm
Contact Type Female Socket
Gender Female
Number of Rows 2
Color Gray
Number of Positions 36
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Series 891
Published 2007
Packaging Bulk
Physical
Weight 3.175147kg
Housing Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 6 Weeks
