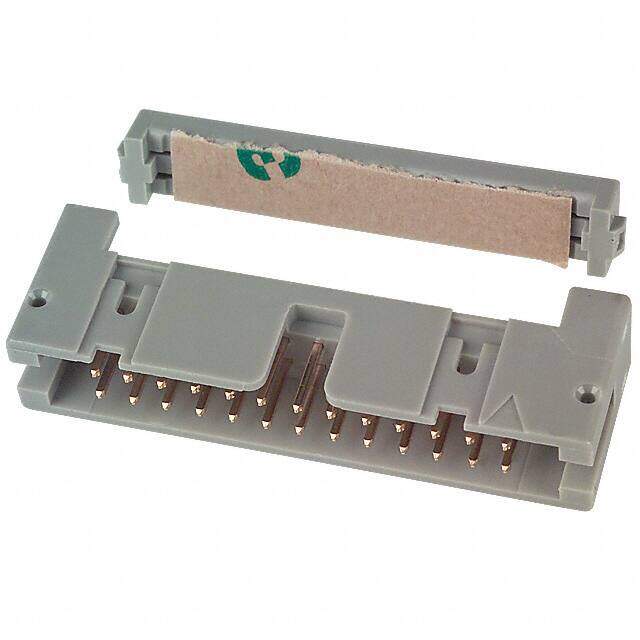

4626-6001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
PLUG CONNECTOR 26 POS W/O FLANGE
PDF
/
Buying Options
Total Price: USD $9.53
Unit Price: USD $9.5304
≥1 USD $9.5304
≥10 USD $8.57648
≥100 USD $8.079456
≥500 USD $7.872304
≥1000 USD $7.665152
≥3000 USD $6.836482
Inventory: 602
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene
Weight 1.088622kg
Technical
Packaging Bulk
Published 2000
Series 4600
Feature Feed Through
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
Connector Type Plug
Number of Positions 26
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Gray
Number of Rows 2
Gender Male
Contact Type Male Pin
Pitch 0.100 2.54mm
Orientation Right Angle
Depth 8.4mm
Current Rating 1A
Contact Finish Gold
Lead Pitch 2.54mm
Number of Contacts 26
Contact Gender Male
Housing Color Grey
Wire Gauge 26-28 AWG, Stranded or Solid
Row Spacing 0.100 (2.54mm)
Max Current Rating 1A
Wire/Cable Type Discrete
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Dimensions
Height 13.34mm
Length 43.2mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
