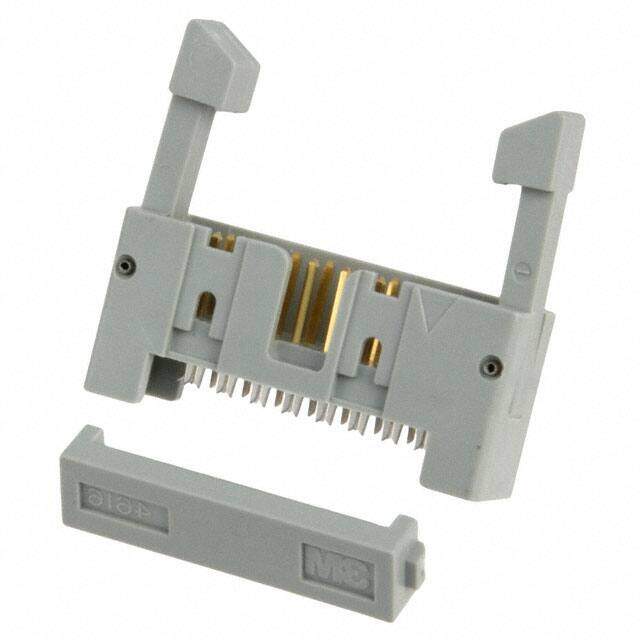

4616-6301 image
Favorite
4616-6301 image
Favorite

4616-6301

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description CONN PLUG 16P IDC 26-28AWG GOLD
PDF
/
Buying Options
Total Price: USD $8.07
Unit Price: USD $8.0696
≥1 USD $8.0696
≥10 USD $7.25912
≥100 USD $6.837952
≥500 USD $6.662656
≥1000 USD $6.48736
≥3000 USD $5.786
Inventory: 468
Minimum: 1
-
+

Technical Details

Technical

Contact Type Male Pin
Pitch 0.100 2.54mm
Orientation Right Angle
Depth 8.4mm
Current Rating 1A
Contact Finish Gold
Number of Contacts 16
Contact Gender Male
Housing Color Grey
Wire Gauge 26-28 AWG, Stranded or Solid
Row Spacing 0.100 (2.54mm)
Max Current Rating 1A
Wire/Cable Type Discrete
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Fastening Type Latch Lock/Eject Hooks, Long
Gender Male
Number of Rows 2
Color Gray
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 16
Connector Type Plug
Termination IDT
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Feed Through
Series 4600
Published 2007
Packaging Bulk

Dimensions

Length 30.5mm
Contact Finish Thickness 30.0μin 0.76μm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free

Physical

Weight 771.107029g
Housing Material Polybutylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold

Supply Chain

Factory Lead Time 6 Weeks
