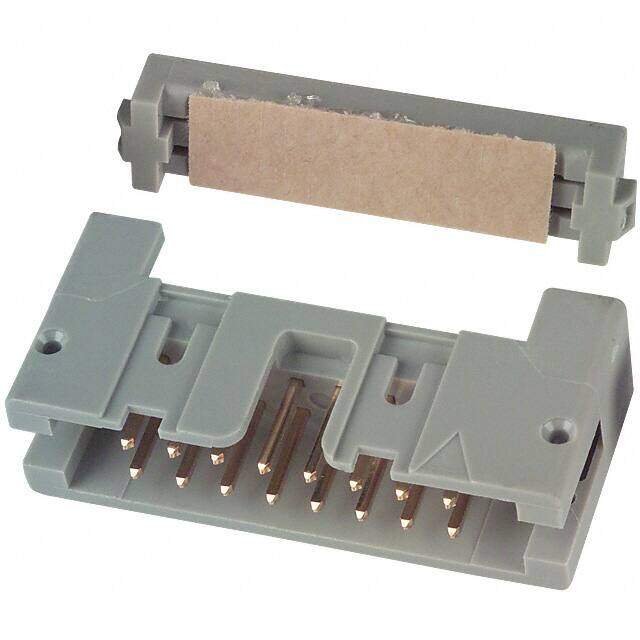

4616-6001

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description PLUG CONNECTOR 16 POS W/O FLANGE
PDF
/
Buying Options
Total Price: USD $7.16
Unit Price: USD $7.1632
≥1 USD $7.1632
≥10 USD $6.44776
≥100 USD $6.074112
≥500 USD $5.91822
≥1000 USD $5.762574
≥3000 USD $5.139552
Inventory: 272
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Length 30.5mm
Height 13.34mm

Technical

Wire Type Discrete or Ribbon Cable
Mating Post Length 6.1mm
Cable Termination IDC
Wire/Cable Gauge 26 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Discrete
Max Current Rating 1A
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1GOhm
Wire Gauge 26-28 AWG, Stranded or Solid
Housing Color Grey
Contact Gender Male
Number of Contacts 16
Lead Pitch 2.54mm
Contact Finish Gold
Current Rating 1A
Depth 8.4mm
Orientation Right Angle
Pitch 0.100 2.54mm
Contact Type Male Pin
Gender Male
Number of Rows 2
Color Gray
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 16
Connector Type Plug
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Series 4600
Published 2000
Packaging Tray

Physical

Weight 635.029318g
Housing Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper

Supply Chain

Factory Lead Time 6 Weeks
