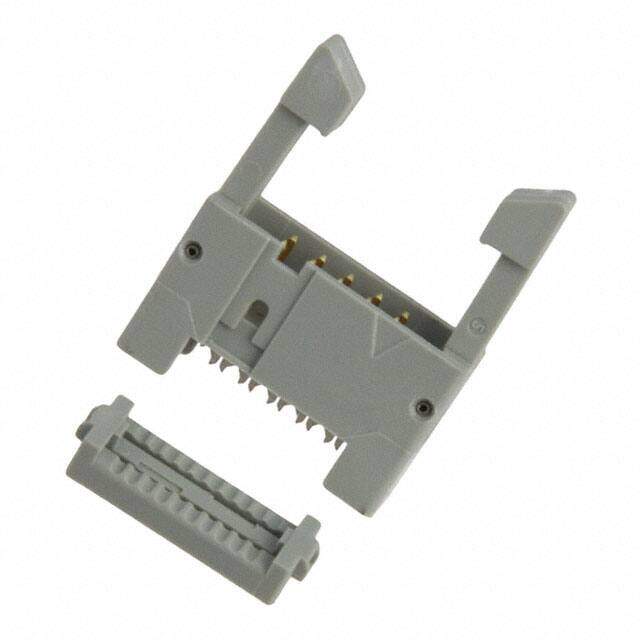

4610-6301
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN PLUG 10P IDC 26-28AWG GOLD
PDF
/
Buying Options
Total Price: USD $9.72
Unit Price: USD $9.720712
≥1 USD $9.720712
≥300 USD $3.878307
≥600 USD $3.749642
≥900 USD $3.68531
Inventory: 4881
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material PBT
Weight 635.029318g
Technical
Packaging Bulk
Published 1999
Series 4600
Feature Feed Through
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination IDT
Connector Type Plug
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Gray
Number of Rows 2
Gender Male
Voltage - Rated 1kV
Fastening Type Latch Lock/Eject Hooks, Long
Contact Type Male Pin
Pitch 0.100 2.54mm
Orientation Right Angle
Current Rating 1A
Contact Finish Gold
Number of Contacts 10
Contact Gender Male
Housing Color Grey
Wire Gauge 26-28 AWG, Stranded or Solid
Row Spacing 0.100 (2.54mm)
Max Current Rating 1A
Wire/Cable Type Discrete
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Dimensions
Height 13.3mm
Length 22.9mm
Width 8.4mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
