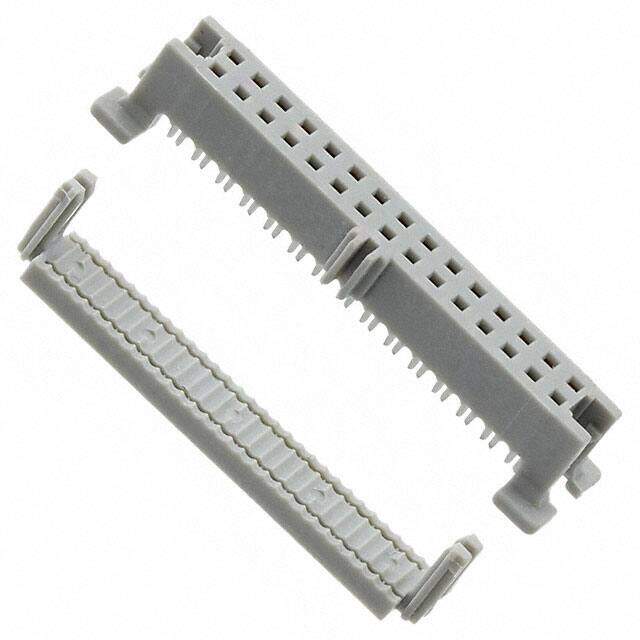

45130-010030
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 30P, .050 Pitch Skt POL,NoLatch, 30 Au
PDF
/
Buying Options
Total Price: USD $7.24
Unit Price: USD $7.2424
≥1 USD $7.2424
≥10 USD $6.5516
≥100 USD $6.189568
≥500 USD $6.03856
≥1000 USD $5.73657
≥3000 USD $5.132732
Inventory: 3777
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 30 AWG
Wire/Cable Type Ribbon
Row Spacing 0.050 (1.27mm)
Wire Gauge 30 AWG
Contact Gender Female
Number of Contacts 30
Contact Finish Gold
Current Rating 1A
Orientation Straight
Pitch 0.050 1.27mm
Contact Type Female Socket
Voltage - Rated 125V
Gender Receptacle
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 30
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series 451
Published 2013
Packaging Tray
Physical
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
