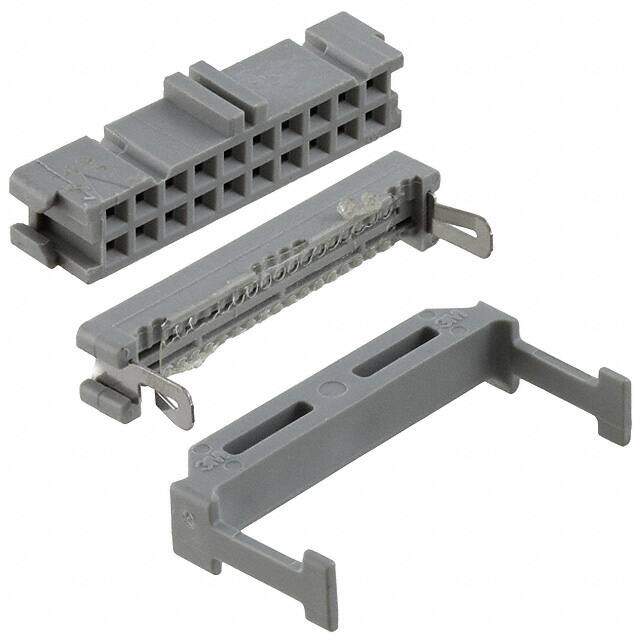

3421-7620
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 20P IDC SOCKET
PDF
/
Buying Options
Total Price: USD $4.98
Unit Price: USD $4.9808
≥1 USD $4.9808
≥10 USD $4.52584
≥100 USD $4.286656
≥500 USD $4.186864
≥1000 USD $3.987544
≥3000 USD $3.489086
Inventory: 661
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 30mm
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Max Current Rating 1A
Row Spacing 0.100 (2.54mm)
Wire Gauge 26-28 AWG
Housing Color Grey
Contact Gender Female
Number of Contacts 20
Contact Finish Gold
Current Rating 1A
Depth 7.6mm
Orientation Right Angle
Pitch 0.100 2.54mm
Contact Type Female Socket
Gender Receptacle
Number of Rows 2
Color Gray
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 20
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Closed End, Polarizing Key, Strain Relief
Series 3000
Published 2009
Packaging Bulk
Physical
Weight 589.670081g
Housing Material Polybutylene
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 6 Weeks
