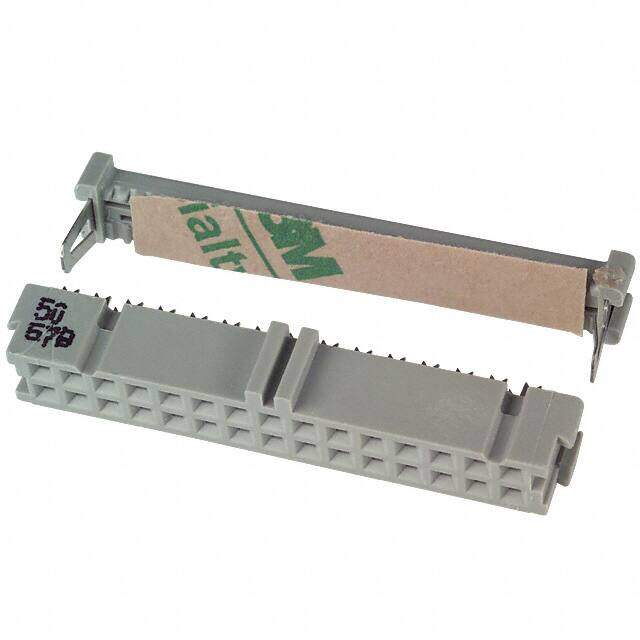

3419-6600
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
SOCK CONN 30 CONT OPEN W/POL GLD
PDF
/
Buying Options
Total Price: USD $6.06
Unit Price: USD $6.0632
≥1 USD $6.0632
≥10 USD $5.48592
≥100 USD $5.182144
≥500 USD $5.055776
≥1000 USD $4.80304
≥3000 USD $4.29748
Inventory: 1047
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper
Contact Plating Gold, Nickel
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Glass, PBT, Polyester
Housing Material Polybutylene
Weight 635.029318g
Technical
Packaging Bulk
Published 2009
Series 3000
Feature Feed Through, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
Connector Type Receptacle
Number of Positions 30
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Gray
Number of Rows 2
Gender Receptacle
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Right Angle
Depth 7.6mm
Current Rating 1A
Contact Finish Gold
Number of Contacts 30
Contact Gender Female
Housing Color Grey
Lead Length 3m
Working Voltage 350V
Wire Gauge 26-28 AWG, Stranded or Solid
Row Spacing 0.100 (2.54mm)
Max Current Rating 1A
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Length 3m
Cable Termination IDC
Contact Current Rating 1A
Sensing Distance 3 m
Wire Type Ribbon Cable
Dimensions
Length 42.7mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
