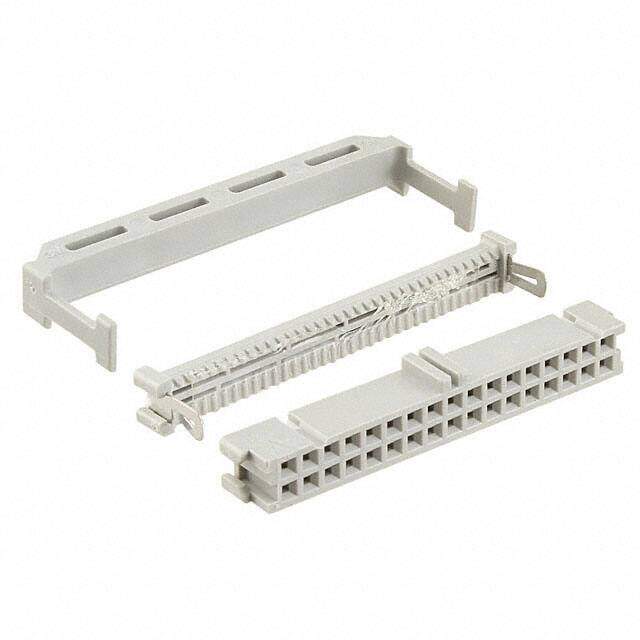

3414-6634
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 34P IDC SOCKET
PDF
/
Buying Options
Total Price: USD $7.46
Unit Price: USD $7.4624
≥1 USD $7.4624
≥10 USD $6.74872
≥100 USD $5.286838
≥500 USD $4.35387
Inventory: 496
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Glass, PBT, Polybutylene, Polyester
Housing Material PBT
Weight 907.18474g
Technical
Packaging Bulk
Published 2001
Series 3000
Feature Feed Through, Polarizing Key, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
Connector Type Receptacle
Number of Positions 34
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Gray
Number of Rows 2
Gender Receptacle
Voltage - Rated DC 350V
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Right Angle
Depth 7.6mm
Current Rating 1A
Contact Finish Gold
Lead Pitch 2.54mm
Number of Contacts 34
Contact Gender Female
Housing Color Grey
Working Voltage 350V
Contact Resistance 20mOhm
Wire Gauge 26-28 AWG
Insulation Resistance 1GOhm
Row Spacing 0.100 (2.54mm)
Max Current Rating 1A
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Number of Poles 34
Cable Termination IDC
Contact Current Rating 1A
Hole Diameter 890 μm
Wire Type Ribbon Cable
Dimensions
Height 16.3mm
Length 47.7mm
Width 6.1mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
