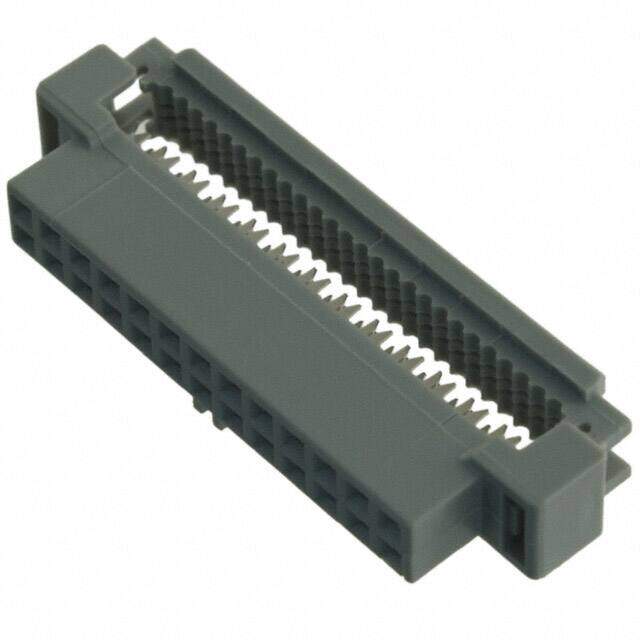

158226-0120
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN SOCKET 26POS IDC 28AWG GOLD
PDF
/
Inventory: 9974
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyester
Technical
Packaging Bulk
Published 2010
Series 158
Feature Feed Through
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) Not Applicable
Termination IDT
Connector Type Socket
Number of Positions 26
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Gray
Number of Rows 2
Gender Receptacle
Voltage - Rated 500V
Contact Type Female Socket
Pitch 0.079 2.00mm
Orientation Straight
Current Rating 1A
Contact Finish Gold
Number of Contacts 26
Contact Gender Female
Wire Gauge 28 AWG
Row Spacing 0.079 (2.00mm)
Wire/Cable Type Ribbon
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Wire Type Ribbon Cable
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Compliance
RoHS Status RoHS Compliant
