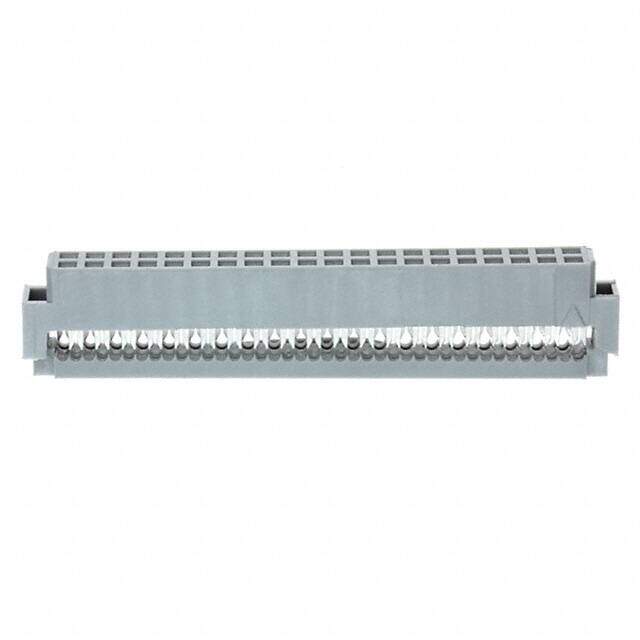

152240-0100-GB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 40POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $4.8
Unit Price: USD $4.796
≥1 USD $4.796
≥10 USD $4.33488
≥100 USD $4.095168
≥500 USD $3.995376
≥1000 USD $3.795616
≥3000 USD $3.517043
Inventory: 481
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 3m
Technical
Wire Type Ribbon Cable
Sensing Distance 3 m
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Cable Length 3m
Wire/Cable Type Ribbon
Row Spacing 0.079 (2.00mm)
Wire Gauge 28 AWG
Lead Length 3m
Housing Color Grey
Contact Gender Female
Number of Contacts 40
Approval Agency UL
Contact Finish Gold
Current Rating 1A
Orientation Straight
Pitch 0.079 2.00mm
Contact Type Female Socket
Voltage - Rated 500V
Gender Receptacle
Number of Rows 2
Color Gray
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 40
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Series 1522
Published 2005
Packaging Bulk
Physical
Housing Material Polyester
Insulation Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Supply Chain
Factory Lead Time 6 Weeks
