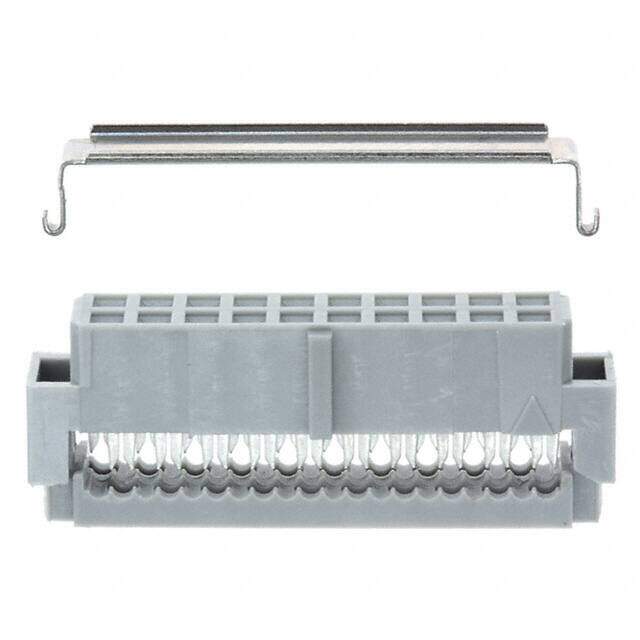

152220-0113-GB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 20POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $7.62
Unit Price: USD $7.617655
≥1 USD $7.617655
≥10 USD $7.18647
≥100 USD $6.779686
≥500 USD $6.395936
≥1000 USD $6.033897
Inventory: 2855
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 25.1mm
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Wire/Cable Type Ribbon
Max Current Rating 1A
Row Spacing 0.079 (2.00mm)
Wire Gauge 28 AWG
Housing Color Grey
Contact Gender Female
Number of Contacts 20
Lead Pitch 2mm
Contact Finish Gold
Current Rating 1A
Depth 4.9mm
Orientation Right Angle
Pitch 0.079 2.00mm
Contact Type Female Socket
Gender Receptacle
Number of Rows 2
Color Gray
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 20
Connector Type Receptacle
Termination IDC, IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key, Strain Relief
Series 1522
Published 2009
Packaging Bulk
Physical
Housing Material Polybutylene
Number of Pins 20
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 6 Weeks
