87278-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Contacts
Description

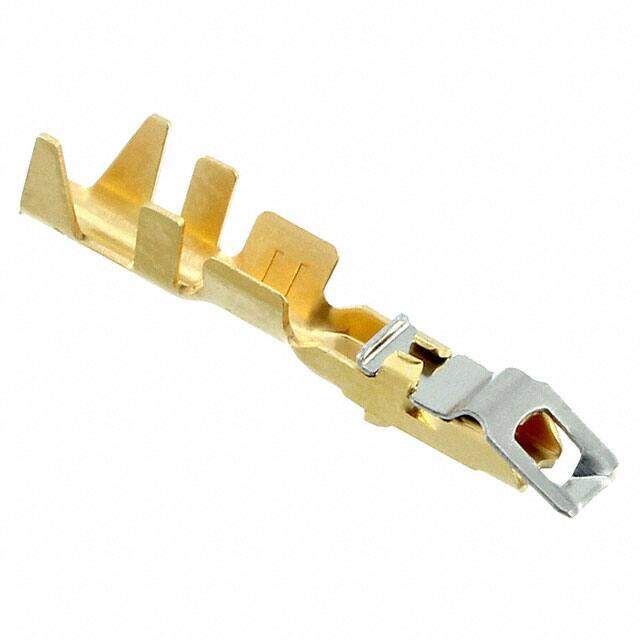

Headers & Wire Housings LOCKING CLIP ASSY 31X62 LP
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3992
≥1 USD $1.3992
≥10 USD $1.276
≥100 USD $1.238336
≥500 USD $1.22584
≥1000 USD $1.137752
≥3000 USD $1.118938
Inventory: 1768
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Bronze
Mount Cable
Technical
Packaging Bulk
Published 1997
Series AMPMODU
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Gender Female
HTS Code 8536.90.40.00
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Orientation Straight
Shielding Unshielded
Depth 3.42mm
Current Rating 5A
Contact Finish Gold
Approval Agency UL
Contact Style Clip
Contact Resistance 12mOhm
Wire Gauge 18-22 AWG
Insulation Resistance 5GOhm
ELV Compliant
Connector Support Type CONNECTOR ACCESSORY
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 18 AWG
Wire/Cable Gauge 22 AWG
Contact Current Rating 5A
Contact Termination Crimp
Insulation Diameter 2.54 mm
Pin or Socket Socket
Assembly Item Name CONTACT
Dimensions
Length 18.13mm
Contact Finish Thickness 15.0μin 0.38μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
