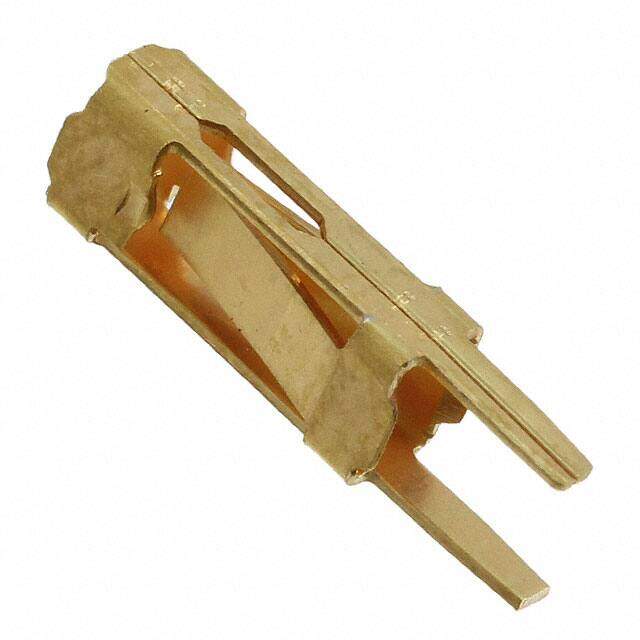

86480-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Contacts
Description
Headers & Wire Housings MOD I RCPT LP
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.1264
≥1 USD $1.1264
≥10 USD $1.0516
≥100 USD $1.012704
≥500 USD $1.002848
≥1000 USD $0.904992
≥3000 USD $0.875635
Inventory: 7605
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
PCB Thickness 1.78mm
Contact Finish Thickness 30.0μin 0.76μm
Technical
Make First / Break Last No
Pin or Socket Socket
Contact Termination Solder, PCB
Terminal and Terminal Block Type PCB TERMINAL
Contact Current Rating 5A
ELV Compliant
Insulation Resistance 5GOhm
Contact Resistance 12MOhm
Lead Length 2.85mm
Contact Gender Female
Contact Finish Gold
Current Rating 5A
Shielding Unshielded
Orientation Vertical
Pitch 3.803218mm
HTS Code 8536.90.40.00
Min Operating Temperature -65°C
Max Operating Temperature 105°C
ECCN Code EAR99
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series AMPMODU Mod I
Published 2008
Packaging Bulk
Physical
PCB Mount Retention Without
Mount Cable
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 25 Weeks
