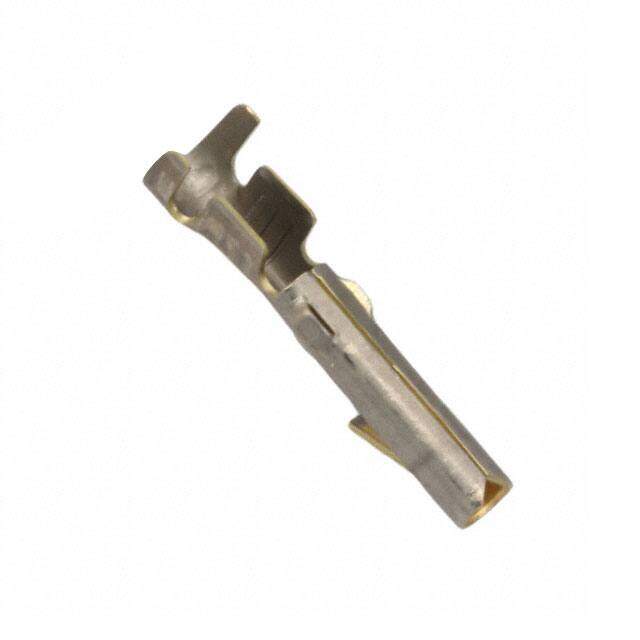

61117-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Contacts
Description
CONN SOCKET 20-14AWG M-N-L GOLD
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.8976
≥1 USD $0.8976
≥10 USD $0.858
≥100 USD $0.82016
≥500 USD $0.80872
≥1000 USD $0.70664
≥3000 USD $0.680205
Inventory: 62856
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 17.9mm
Height 4.52mm
Technical
Cable Entry-Max 0.13 inch
Assembly Item Name CONTACT
Pin or Socket Socket
Contact Retention With
Insulation Diameter -3.3 mm
Contact Termination Crimp
Circuit Application Power
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 20 AWG
Wire/Cable Type Discrete
Connector Support Type CONNECTOR ACCESSORY
Max Current Rating 13A
Wire Gauge 14-20 AWG
Operating Supply Voltage 250V
Operating Temperature (Min) -55°C
Contact Gender FEMALE
Operating Temperature (Max) 105°C
Contact Finish Gold
Current Rating 15A
Depth 4.32mm
Shielding Unshielded
Orientation Straight
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.90.40.00
Voltage - Rated 250V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Commercial MATE-N-LOK
Published 1997
Packaging Tape & Reel (TR)
Physical
Mount Cable
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 14 Weeks
