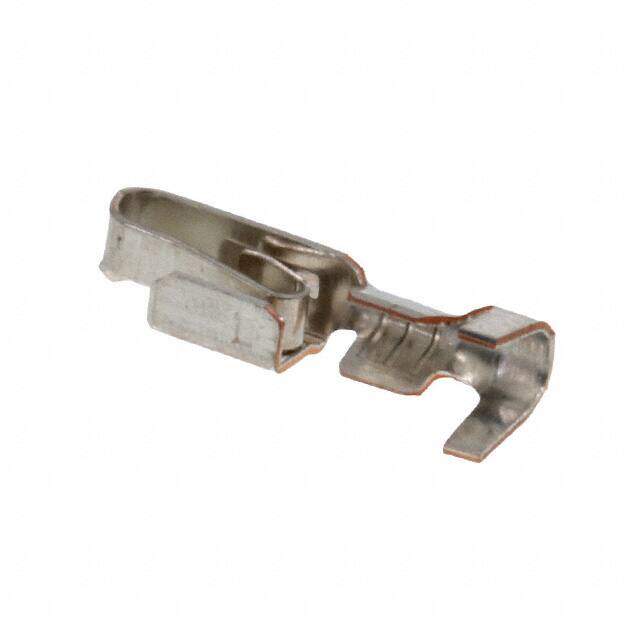

3-647409-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Contacts
Description
Contact SKT Crimp ST Cable Mount Loose Piece
PDF
/
Buying Options
Total Price: USD $0.25
Unit Price: USD $0.2464
≥1 USD $0.2464
≥10 USD $0.2112
≥100 USD $0.191664
≥500 USD $0.138292
≥1000 USD $0.12254
≥3000 USD $0.108539
Inventory: 12380
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 2.03μm
Contact Finish Thickness 80.0μin 2.03μm
Length 13.68mm
Height 3.81mm
Technical
Pin or Socket Socket
Insulation Diameter 2.84 mm
Contact Termination Crimp
Circuit Application Power
Contact Current Rating 10A
Sealable No
Wire/Cable Gauge 24 AWG
Wire/Cable Type Discrete
Wire Gauge 18-24 AWG
Contact Resistance 3mOhm
Contact Style Standard
Operating Supply Voltage 250V
Contact Finish Tin
Current Rating 10A
Depth 3.94mm
Shielding Unshielded
Orientation Straight
Pitch 250μm
Gender Female
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 1
Type Power
Connector Type Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SL-156
Published 2005
Packaging Bulk
Physical
Underplate Material Nickel
Housing Material Nylon
Mount Cable
Contact Plating Tin
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 13 Weeks
