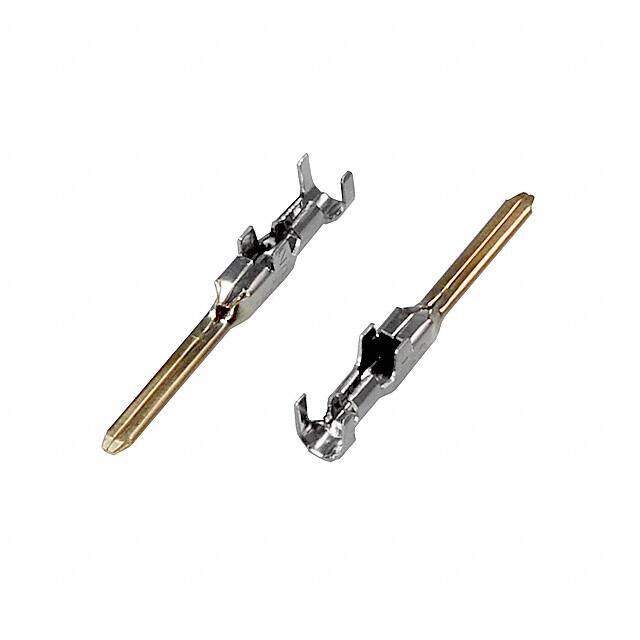

175289-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Contacts
Description
CONN TAB 16-20AWG CRIMP 15GOLD
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
≥10 USD $0.41976
≥100 USD $0.418176
≥500 USD $0.407616
≥1000 USD $0.349624
≥3000 USD $0.316272
Inventory: 15670
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness 15.0μin 0.38μm
Length 25.3mm
Height 4mm
Technical
Pin or Socket Pin
Contact Retention With
Insulation Diameter 2.8 mm
Contact Termination Crimp
Contact Current Rating 15A
Sealable No
Wire/Cable Gauge 20 AWG
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 20 AWG
Wire/Cable Type Discrete
ELV Compliant
Wire Gauge 16-20 AWG
Operating Supply Voltage 250V
Voltage - Rated AC 250V
Contact Finish Gold
Current Rating 8A
Depth 3.7mm
Shielding Unshielded
Orientation Straight
Gender Male
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Connector Type Tab
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Dynamic D-3
Published 1997
Packaging Bulk
Physical
Underplate Material Nickel
Mount Cable
Contact Plating Gold
Contact Material Copper
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 22 Weeks
