1452668-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Contacts
Description

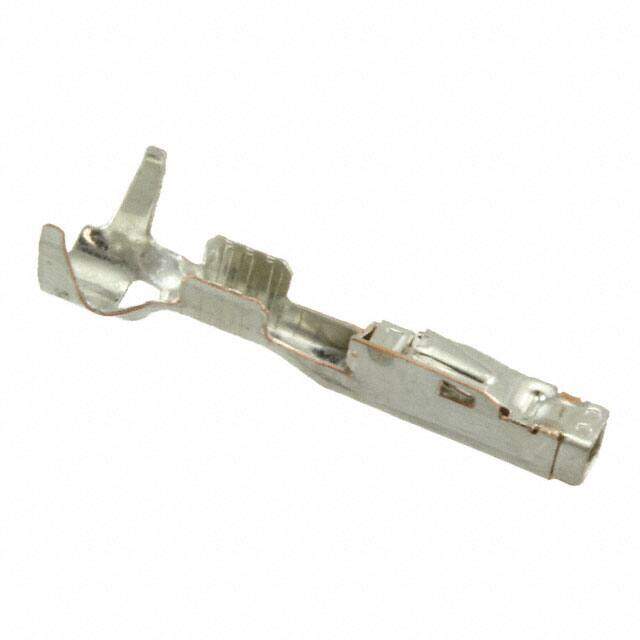

Automotive Connectors Mcon-1.2 LL
PDF
/
Buying Options
Total Price: USD $2.94
Unit Price: USD $0.029378
≥100 USD $0.029378
≥19500 USD $0.011369
≥52000 USD $0.01097
≥97500 USD $0.010772
Inventory: 1122
Minimum: 100
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Tab Thickness 600μm
Length 16mm
Technical
Mating Tab Width 1.2mm
Pin or Socket Socket
Insulation Diameter 1.9 mm
Contact Termination Crimp
Sealable Yes
Wire/Cable Gauge 20 AWG
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 20 AWG
Connector Support Type CONNECTOR ACCESSORY
ELV Compliant
Wire Gauge 18-20 AWG
Contact Finish Tin
Current Rating 20A
Shielding Unshielded
Orientation Straight
Gender Female
Min Operating Temperature -40°C
Max Operating Temperature 130°C
Connector Type Connector, Crimp, Power, Signal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series MCON
Published 2009
Packaging Tape & Reel (TR)
Physical
Mount Cable
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 9 Weeks
