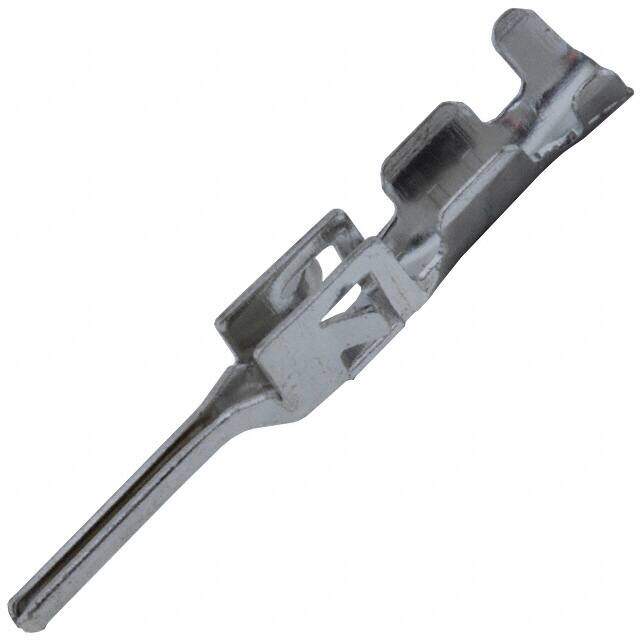

1-794612-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Contacts
Description
CONN PIN 20-24AWG CRIMP TIN
PDF
/
Buying Options
Total Price: USD $0.12
Unit Price: USD $0.1232
≥1 USD $0.1232
≥10 USD $0.1056
≥100 USD $0.087736
≥500 USD $0.072961
≥1000 USD $0.061195
≥3000 USD $0.053794
Inventory: 22664
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Brass
Mount Cable
Number of Pins 1
Underplate Material Nickel
Technical
Packaging Bulk
Published 2002
Series Micro MATE-N-LOK
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Stamped
Max Operating Temperature 221°C
Min Operating Temperature -40°C
Voltage - Rated 250V
HTS Code 8536.90.40.00
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Pitch 3mm
Orientation Straight
Depth 2.48mm
Current Rating 5A
Contact Finish Tin
Contact Gender Male
Operating Supply Voltage 250V
Wire Gauge 20-24 AWG
Max Voltage Rating (AC) 250V
Max Current Rating 5A
Wire/Cable Type Discrete
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Wire/Cable Gauge 20 AWG
Contact Current Rating 5A
Circuit Application Power
Contact Termination Crimp
Insulation Diameter 1.52 mm
Pin or Socket Pin
Assembly Item Name CONTACT
Cable Entry-Max 0.06 inch
Cable Entry-Min 0.035 inch
Dimensions
Length 13.73mm
Contact Finish Thickness 100.0μin 2.54μm
Plating Thickness 2.54μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
