02-06-2103
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Contacts
Description

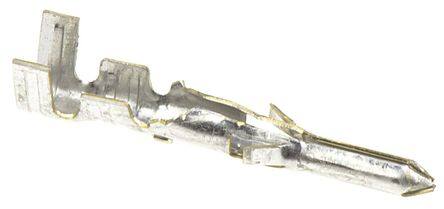

MOLEX 02-06-2103 1.57mmDiameter, Standard .062" Pin & Socket Crimp Terminal, Series 1560, Male, 18-24 AWG
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.706559
≥1 USD $0.706559
≥10 USD $0.666568
≥100 USD $0.62884
≥500 USD $0.593241
≥1000 USD $0.559664
Inventory: 1118
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Finish Thickness 510
Width 6.35mm
Length 16.82mm
Height 3.56mm
Technical
Assembly Item Name CONTACT
Current Rating (Max) 5A
Wire/Cable Gauge 24 AWG
Connector Support Type CONNECTOR ACCESSORY
Max Voltage Rating (AC) 250V
Contact Resistance 3.2mOhm
Contact Style RND PIN-SKT
Contact Gender Male
Number of Contacts 1
Voltage - Rated AC 250V
Current Rating 5A
Depth 3.56mm
Shielding Unshielded
Orientation Straight
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.90.40.00
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type Connector, PCB, Pin, Power, Signal
ECCN Code EAR99
Termination Crimp
Pbfree Code yes
Published 2003
Physical
Weight 120.003531mg
Mount Cable
Contact Plating Tin
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
