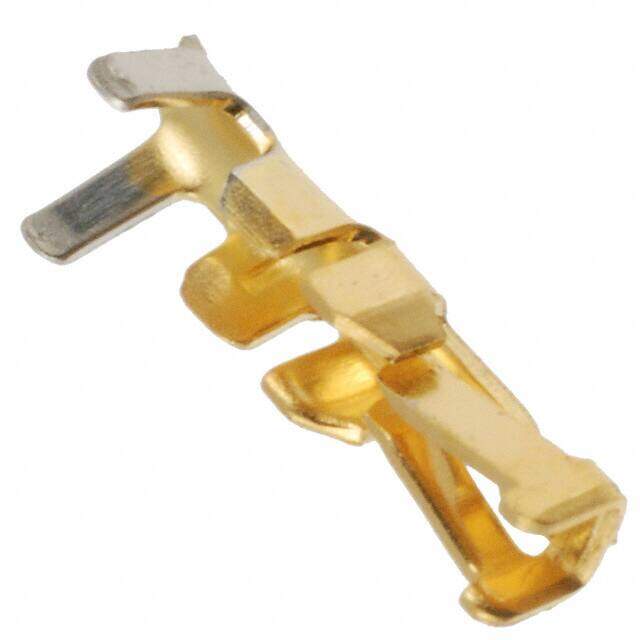

77138-101LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Contacts
Description
CONN TERM FEMALE 26-30AWG CRIMP
PDF
/
Buying Options
Total Price: USD $0.16
Unit Price: USD $0.1584
≥1 USD $0.1584
≥10 USD $0.12232
≥100 USD $0.101376
≥500 USD $0.093632
≥1000 USD $0.090464
≥3000 USD $0.078003
Inventory: 52314
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 5.9mm
Technical
Pin or Socket Socket
Contact Termination Crimp
Wire/Cable Gauge 30 AWG
Wire Gauge (Min) 30 AWG
Wire Gauge (Max) 26 AWG
Insulation Resistance 1GOhm
Wire Gauge 26-30 AWG
Contact Resistance 20mOhm
Contact Gender Female
Voltage - Rated AC 200V
Contact Finish Gold
Current Rating 2A
Depth 1.9mm
Orientation Straight
Voltage - Rated 200V
Gender Receptacle
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Resistance 20mOhm
Connector Type Connector, Crimp, PCB, Signal
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Minitek? 2.00mm
Published 2008
Packaging Tape & Reel (TR)
Physical
Mount Cable
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 6 Weeks
