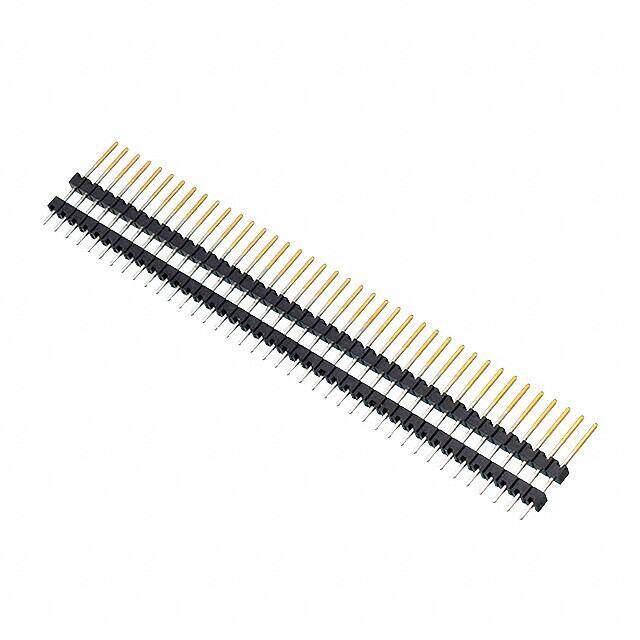

9-146462-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Headers & Wire Housings 40 MODII HDR SRST UNSHRD STKG
PDF
/
Buying Options
Total Price: USD $16.05
Unit Price: USD $16.049751
≥1 USD $16.049751
≥10 USD $15.141269
≥100 USD $14.284212
≥500 USD $13.475685
≥1000 USD $12.712899
Inventory: 5763
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Housing Material Thermoplastic
PCB Mounting Orientation Vertical
PCB Mount Retention Without
Technical
Packaging Bulk
Published 2014
Series AMPMODU Mod II
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Pin, Plug
Number of Positions 40
Max Operating Temperature 125°C
Min Operating Temperature -65°C
Color Black
Number of Rows 1
Pitch 0.100 2.54mm
Orientation Vertical
Current Rating 3A
Approval Agency CSA
Number of Contacts 40
Housing Color Black
Lead Length 18.77mm
Contact Finish - Post (Mating) Gold
Insulation Resistance 5GOhm
ELV Compliant
Plating Gold
Contact Current Rating 3A
Mating Post Length 8.38mm
Stackable Yes
Dimensions
Length 18.7706mm
Length - Stack Height 0.300 7.620mm
Contact Finish Thickness - Mating 381 nm
Length - Overall Pin 0.739 18.771mm
Length - Post (Mating) 0.330 8.382mm
Contact Finish Thickness - Post (Mating) 15.0μin 0.38μm
Length - Tail 0.109 2.769mm
Stack Height 7.62mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
