828296-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description

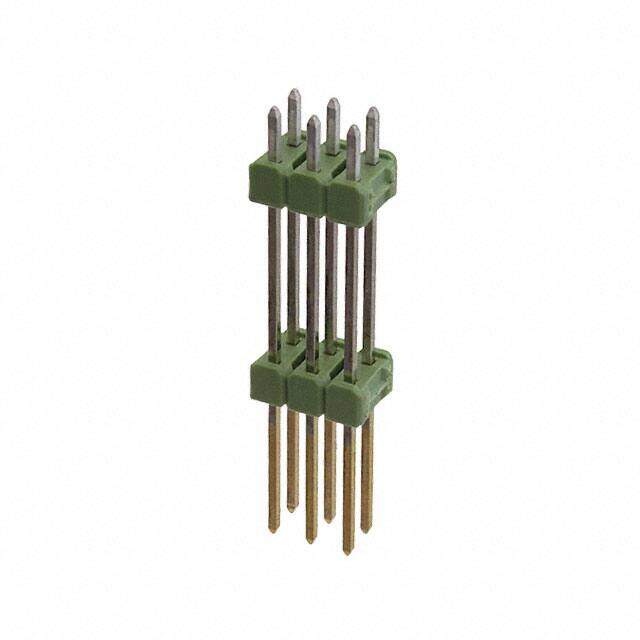

CONN HDR 6POS 0.1 STACK T/H GOLD
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.1088
≥1 USD $1.1088
≥10 USD $1.03224
≥100 USD $0.782778
≥500 USD $0.701149
≥1000 USD $0.633908
≥3000 USD $0.594352
Inventory: 968
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material CuZn
Contact Plating Gold, Nickel, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Housing Material PBT
PCB Mounting Orientation Vertical
Underplate Material Nickel
Technical
Packaging Bulk
Published 2004
Series AMPMODU Mod II
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Pin, Plug
Number of Positions 6
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Green
Number of Rows 2
Pitch 0.100 2.54mm
Orientation Vertical
Current Rating 5A
Number of Contacts 6
Housing Color Green
Lead Length 3.2004mm
Contact Finish - Post (Mating) Gold
Insulation Resistance 5GOhm
Row Spacing 0.100 (2.54mm)
ELV Compliant
Contact Current Rating 5A
Mating Post Length 4.3942mm
High Temperature Housing No
High Speed Serial Data Connector No
Dimensions
Plating Thickness 5μm
Length - Stack Height 0.650 16.500mm
Length - Overall Pin 1.181 30.000mm
Length - Post (Mating) 0.405 10.287mm
Contact Finish Thickness - Post (Mating) Flash
Length - Tail 0.126 3.200mm
Compliance
RoHS Status RoHS Compliant
