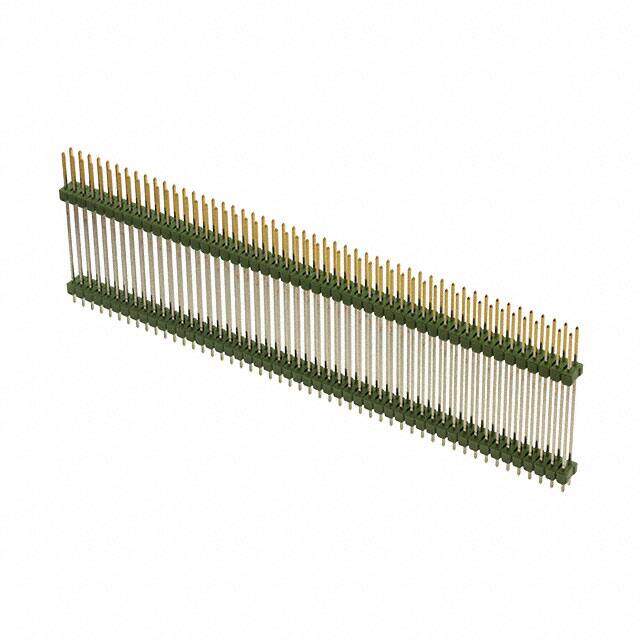

5-829822-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 50 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $26.9
Unit Price: USD $26.9016
≥1 USD $26.9016
≥10 USD $20.639168
≥100 USD $19.073384
Inventory: 223
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Copper, Tin
Contact Plating Gold
Mounting Type Through Hole
Contact Shape Square
Housing Material Polybutylene
PCB Mounting Orientation Vertical
PCB Mount Retention Without
Technical
Packaging Bulk
Published 2011
Series AMPMODU Mod II
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Pin, Plug
Number of Positions 100
Max Operating Temperature 125°C
Min Operating Temperature -65°C
Color Green
Number of Rows 2
Gender Male
Pitch 0.100 2.54mm
Orientation Vertical
Depth 5mm
Current Rating 2A
Number of Contacts 50
Contact Gender Male
Housing Color Green
Lead Length 3mm
Contact Finish - Post (Mating) Gold
Insulation Resistance 5GOhm
Row Spacing 0.100 (2.54mm)
ELV Compliant
Plating Gold
Contact Current Rating 5A
Mating Post Length 5mm
Stackable Yes
Dimensions
Length 127mm
Length - Stack Height 1.075 27.300mm
Length - Overall Pin 1.551 39.400mm
Length - Post (Mating) 0.358 9.100mm
Contact Finish Thickness - Post (Mating) 31.5μin 0.80μm
Length - Tail 0.118 3.000mm
Stack Height 27.3mm
Compliance
RoHS Status RoHS Compliant
