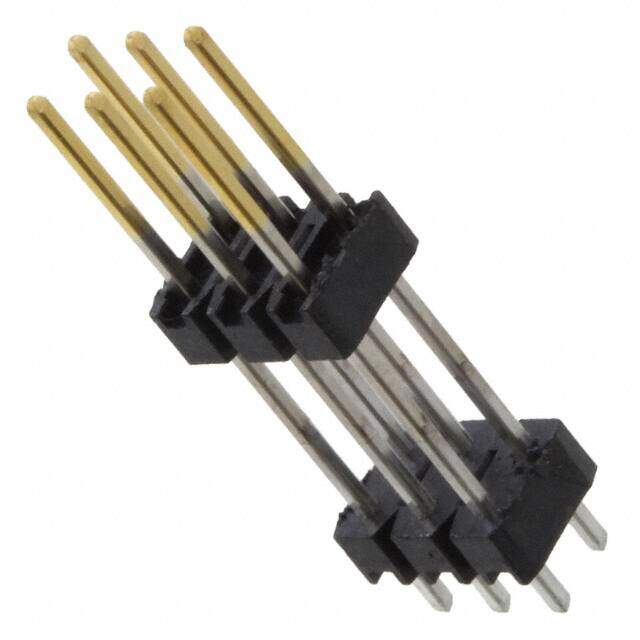

5-146494-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 6 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 6402
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Stack Height 12.7mm
Length - Tail 0.100 2.540mm
Contact Finish Thickness - Post (Mating) 15.0μin 0.38μm
Length - Post (Mating) 0.330 8.382mm
Length - Overall Pin 0.930 23.622mm
Contact Finish Thickness - Mating 381 nm
Length - Stack Height 0.500 12.700mm
Length 23.622mm
Technical
Stackable Yes
Mating Post Length 8.38mm
Contact Current Rating 3A
Plating Gold
ELV Compliant
Row Spacing 0.100 (2.54mm)
Insulation Resistance 5GOhm
Contact Finish - Post (Mating) Gold
Lead Length 23.62mm
Housing Color Black
Number of Contacts 6
Approval Agency CSA
Depth 4.88mm
Orientation Vertical
Pitch 0.100 2.54mm
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 6
Connector Type Header, Pin, Plug
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AMPMODU Mod II
Published 2012
Packaging Bulk
Physical
PCB Mount Retention Without
PCB Mounting Orientation Vertical
Housing Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 17 Weeks
