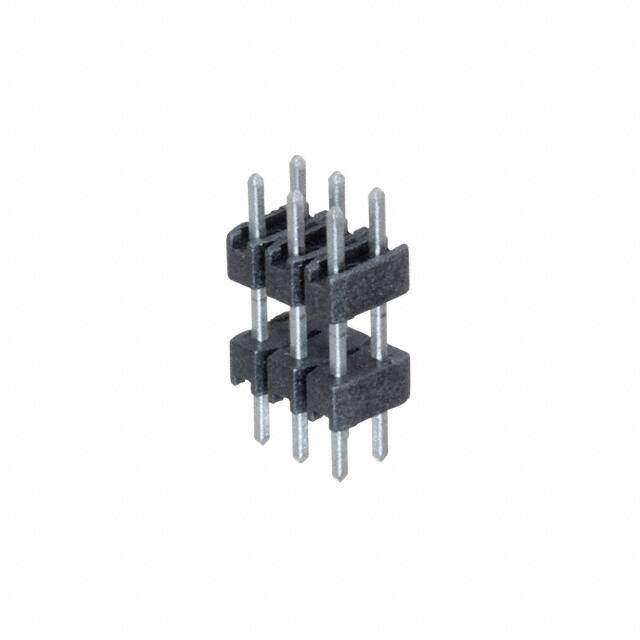

5-146486-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Headers & Wire Housings 06 MODII HDR DRST UNSHRD STKG
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.77528
≥100 USD $0.638678
≥500 USD $0.502066
≥1000 USD $0.430338
≥3000 USD $0.422699
Inventory: 2443
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Stack Height 7.62mm
Length - Tail 0.110 2.800mm
Contact Finish Thickness - Post (Mating) 100.0μin 2.54μm
Length - Post (Mating) 0.123 3.124mm
Length - Overall Pin 0.533 13.538mm
Length - Stack Height 0.300 7.620mm
Technical
Stackable Yes
Mating Post Length 2.7686mm
Contact Current Rating 3A
Plating Tin
ELV Compliant
Row Spacing 0.100 (2.54mm)
Insulation Resistance 5GOhm
Contact Finish - Post (Mating) Tin
Lead Length 13.54mm
Housing Color Black
Number of Contacts 6
Approval Agency CSA
Current Rating 3A
Orientation Vertical
Pitch 0.100 2.54mm
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 6
Connector Type Header, Pin, Plug
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AMPMODU Mod II
Published 2011
Packaging Bulk
Physical
PCB Mount Retention Without
PCB Mounting Orientation Vertical
Housing Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 17 Weeks
