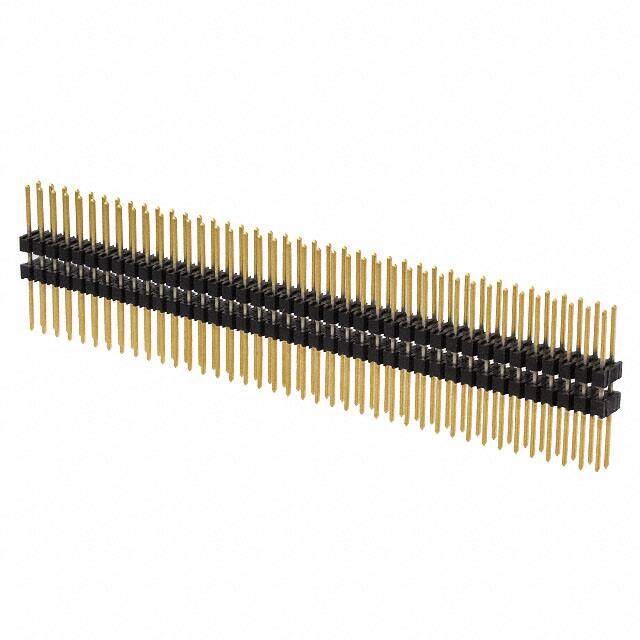

4-146495-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Headers & Wire Housings 80 MODII HDR DRST UNSHRD STKG
PDF
/
Buying Options
Total Price: USD $28.2
Unit Price: USD $28.204
≥1 USD $28.204
≥10 USD $23.276
≥100 USD $19.993688
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material COPPER ALLOY
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Housing Material Thermoplastic
PCB Mount Retention Without
Technical
Packaging Bulk
Published 2014
Series AMPMODU Mod II
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Pin, Plug
Number of Positions 80
Max Operating Temperature 125°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 40
Orientation Vertical
Current Rating 3A
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency CSA
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Contact Gender MALE
UL Flammability Code 94V-0
Lead Length 23.62mm
Contact Finish - Post (Mating) Gold
Contact Style SQ PIN-SKT
Insulation Resistance 5GOhm
Row Spacing 0.100 (2.54mm)
Body/Shell Style RECEPTACLE
ELV Compliant
Dielectric Withstanding Voltage 750VAC V
Contact Pattern RECTANGULAR
Contact Current Rating 3A
Mating Post Length 8.38mm
Stackable Yes
Dimensions
Length 23.622mm
Plating Thickness 15μin
Length - Stack Height 0.270 6.858mm
Contact Finish Thickness - Mating 381 nm
Length - Overall Pin 0.930 23.622mm
Length - Post (Mating) 0.330 8.382mm
Contact Finish Thickness - Post (Mating) 15.0μin 0.38μm
Length - Tail 0.330 8.382mm
Stack Height 6.858mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Alternative Model
