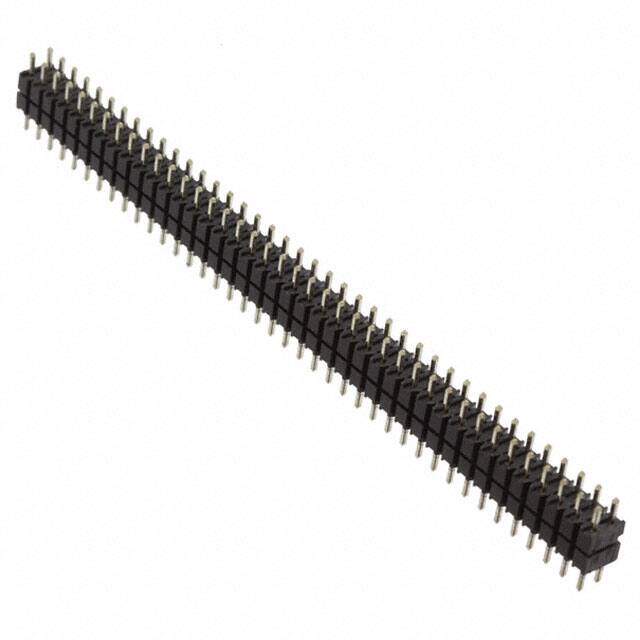

4-146483-0
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 80 POS 2.54mm Solder ST Thru-Hole Automotive Carton
PDF
/
Buying Options
Total Price: USD $14.8
Unit Price: USD $14.8016
≥1 USD $14.8016
≥10 USD $14.49272
≥100 USD $12.102904
≥500 USD $10.484038
Inventory: 125
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Stack Height 5.08mm
Length - Tail 0.110 2.800mm
Contact Finish Thickness - Post (Mating) 100.0μin 2.54μm
Length - Post (Mating) 0.130 3.300mm
Length - Overall Pin 0.440 11.176mm
Length - Stack Height 0.200 5.080mm
Plating Thickness 100μin
Length 101.19mm
Technical
Stackable Yes
Mating Post Length 2.7686mm
Contact Current Rating 3A
Contact Pattern RECTANGULAR
Dielectric Withstanding Voltage 750VAC V
ELV Non-Compliant
Body/Shell Style RECEPTACLE
Row Spacing 0.100 (2.54mm)
Insulation Resistance 5GOhm
Contact Style SQ PIN-SKT
Contact Finish - Post (Mating) Tin-Lead
Lead Length 11.18mm
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Depth 4.87mm
Orientation Vertical
Total Number of Contacts 80
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature STACKING & W/O MOUNTING EARS
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 80
Connector Type Header, Pin, Plug
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series AMPMODU Mod II
Published 2011
Packaging Bulk
Physical
PCB Mount Retention Without
Housing Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Contact Plating Lead, Nickel, Tin
Contact Material COPPER ALLOY
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 20 Weeks
Alternative Model
