4-146480-0
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description

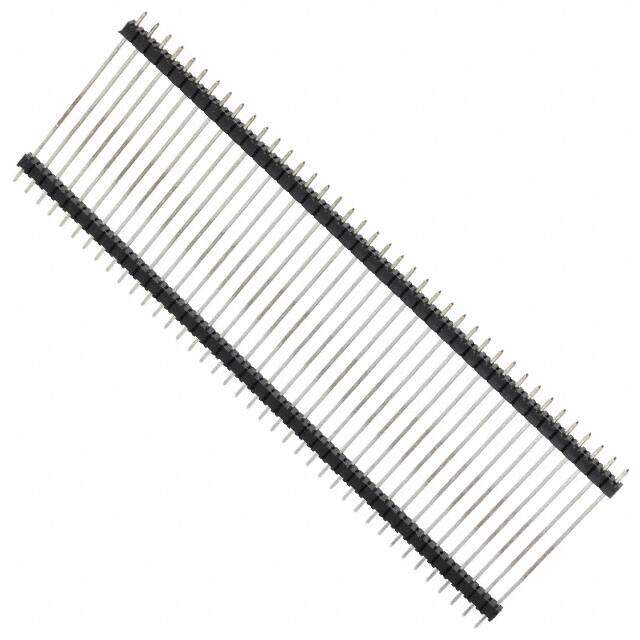

Conn Board Stacker HDR 40 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $21.96
Unit Price: USD $21.956012
≥1 USD $21.956012
≥10 USD $20.713218
≥100 USD $19.540774
≥500 USD $18.43469
≥1000 USD $17.391223
Inventory: 5763
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Stack Height 30.48mm
Length - Tail 0.110 2.800mm
Contact Finish Thickness - Post (Mating) 100.0μin 2.54μm
Length - Post (Mating) 0.120 3.050mm
Length - Overall Pin 1.430 36.322mm
Length - Stack Height 1.200 30.480mm
Length 36.322mm
Technical
Stackable Yes
Mating Post Length 2.7686mm
Contact Current Rating 3A
Contact Pattern RECTANGULAR
Dielectric Withstanding Voltage 750VAC V
ELV Non-Compliant
Body/Shell Style RECEPTACLE
Insulation Resistance 5GOhm
Contact Style SQ PIN-SKT
Contact Finish - Post (Mating) Tin-Lead
Rated Current (Signal) 3A
Lead Length 36.32mm
UL Flammability Code 94V-0
Contact Gender MALE
Body Breadth 0.092 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Orientation Vertical
Total Number of Contacts 40
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature STACKING & W/O MOUNTING EARS
Number of Rows 1
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 40
Connector Type Header, Pin, Plug
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series AMPMODU Mod II
Published 2011
Packaging Bulk
Physical
PCB Mount Retention Without
Housing Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Nickel, Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 42 Weeks
Alternative Model
