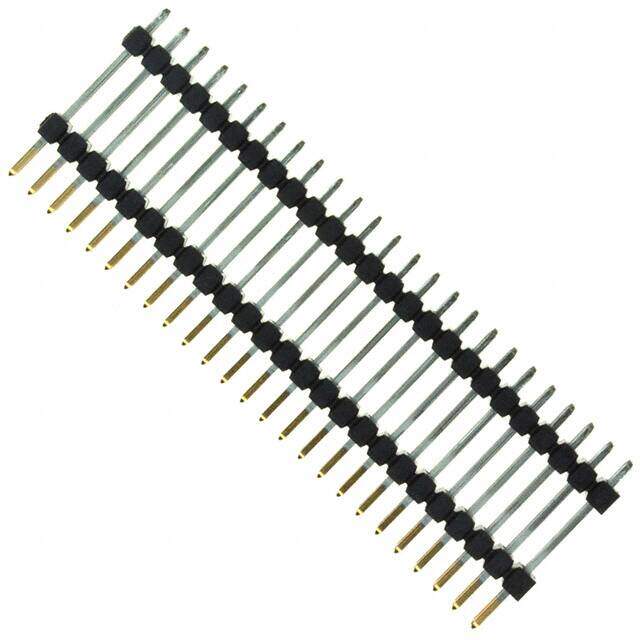

TW-25-06-S-D-430-090
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
CONN HEADER DUAL 2MM 50POS GOLD
PDF
/
Inventory: 2143
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length - Tail 0.050 1.270mm
Contact Finish Thickness - Post (Mating) 30.0μin 0.76μm
Length - Post (Mating) 0.193 4.902mm
Length - Overall Pin 0.673 17.094mm
Length - Stack Height 0.430 10.922mm
Length 17.0942mm
Technical
Row Spacing 0.079 (2.00mm)
Contact Finish - Post (Mating) Gold
UL Flammability Code 94V-0
Total Number of Contacts 50
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Color Black
Number of Positions 50
Connector Type BOARD STACKING CONNECTOR
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series TW
Published 1998
Packaging Tube
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 3 Weeks
