FW-25-04-G-D-197-202
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Rectangular Connector Board Spacer
PDF
/
Inventory: 9829
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Body Breadth 0.135 inch
Contact Gender MALE
Operating Temperature (Min) -55°C
Body Depth 0.197 inch
Contact Finish - Post (Mating) Gold
Contact Style SQ PIN-SKT
Row Spacing 0.050 (1.27mm)
Contact Pattern RECTANGULAR
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Total Number of Contacts 50
Pitch 0.050 1.27mm
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Number of Rows 2
Color Black
Number of Positions 50
Connector Type BOARD CONNECTOR
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series Flex Stack, FW
Packaging Bulk
Dimensions
Plating Thickness 10μin
Length - Stack Height 0.197 5.004mm
Length - Overall Pin 0.489 12.421mm
Length - Post (Mating) 0.202 5.131mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Termination 0.09 inch
Length - Tail 0.090 2.286mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 3 Weeks

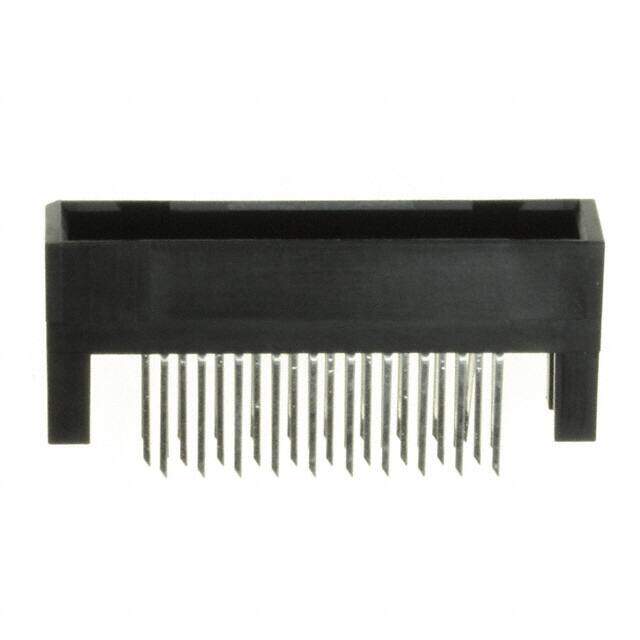

Alternative Model
