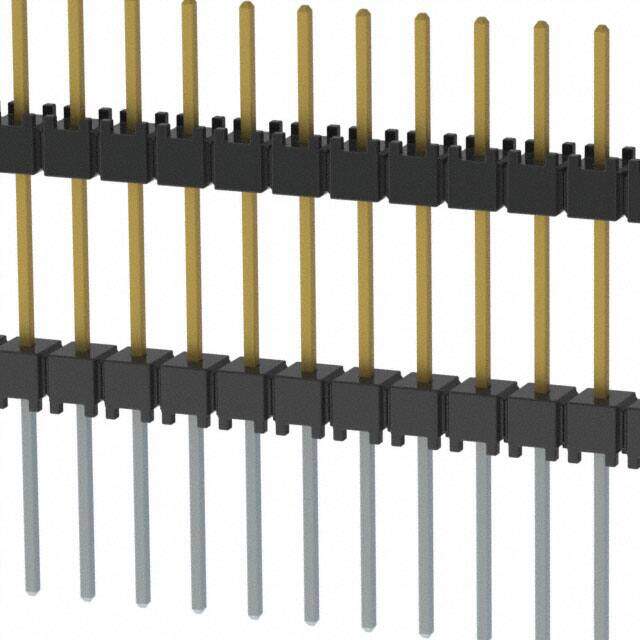

EW-50-12-L-S-500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 50 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $6.8
Unit Price: USD $6.8024
≥1 USD $6.8024
≥10 USD $6.14768
≥100 USD $5.38296
≥500 USD $4.532986
≥1000 USD $3.966371
Inventory: 149
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length - Tail 0.330 8.382mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Post (Mating) 0.200 5.080mm
Length - Overall Pin 1.030 26.162mm
Length - Stack Height 0.500 12.700mm
Technical
Contact Finish - Post (Mating) Gold
Contact Gender MALE
Current Rating 3A
Orientation Straight
Total Number of Contacts 50
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 1
Color Black
Number of Positions 50
Connector Type BOARD STACKING CONNECTOR
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Flex Stack, EW
Published 2005
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Contact Material Bronze
Supply Chain
Factory Lead Time 3 Weeks
