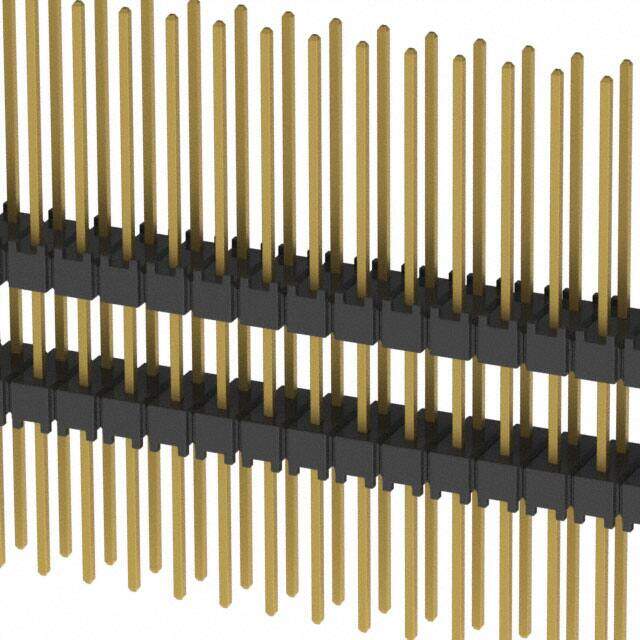

EW-25-13-G-D-400
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 50 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 5187
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mount Through Hole
Mounting Type Through Hole
Technical
Packaging Bulk
Series Flex Stack, EW
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type BOARD STACKING CONNECTOR
Number of Positions 50
Color Black
Number of Rows 2
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 50
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish - Post (Mating) Gold
Row Spacing 0.100 (2.54mm)
Dimensions
Length - Stack Height 0.400 10.160mm
Length - Overall Pin 1.230 31.242mm
Length - Post (Mating) 0.500 12.700mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Tail 0.330 8.382mm
Compliance
RoHS Status ROHS3 Compliant
