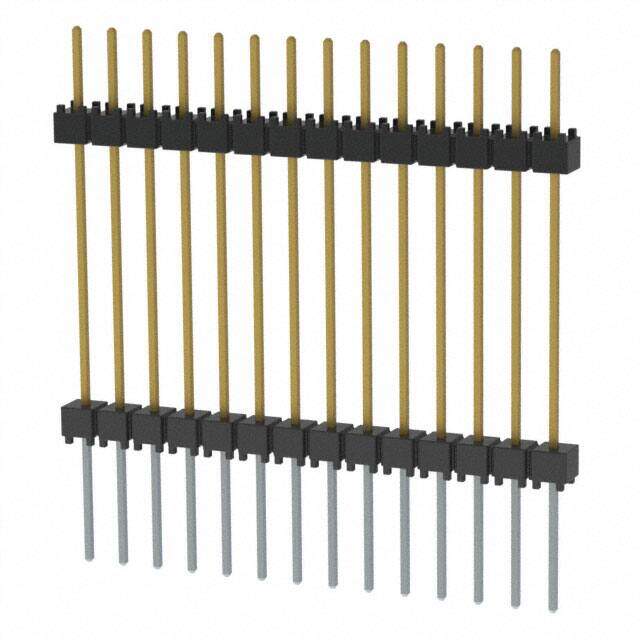

EW-14-14-L-S-900
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 14 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 2871
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length - Tail 0.330 8.382mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Post (Mating) 0.200 5.080mm
Length - Overall Pin 1.430 36.322mm
Length - Stack Height 0.900 22.860mm
Technical
Contact Finish - Post (Mating) Gold
UL Flammability Code 94V-0
Total Number of Contacts 14
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 1
Color Black
Number of Positions 14
Connector Type BOARD STACKING CONNECTOR
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Flex Stack, EW
Published 2016
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 3 Weeks
