EW-10-11-G-S-415
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 10 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 10024
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mount Through Hole
Mounting Type Through Hole
Technical
Packaging Bulk
Series Flex Stack, EW
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type BOARD STACKING CONNECTOR
Number of Positions 10
Color Black
Number of Rows 1
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 10
Contact Finish - Post (Mating) Gold
Dimensions
Length - Stack Height 0.415 10.541mm
Length - Overall Pin 0.930 23.622mm
Length - Post (Mating) 0.185 4.699mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Tail 0.330 8.382mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant

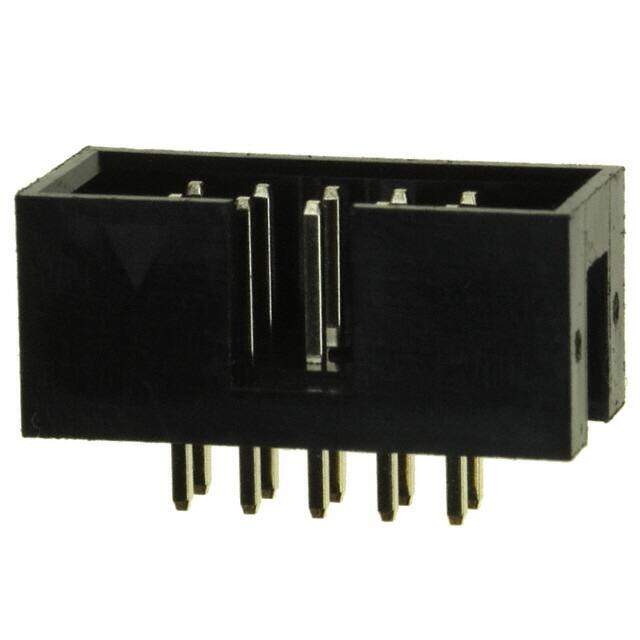

Alternative Model
