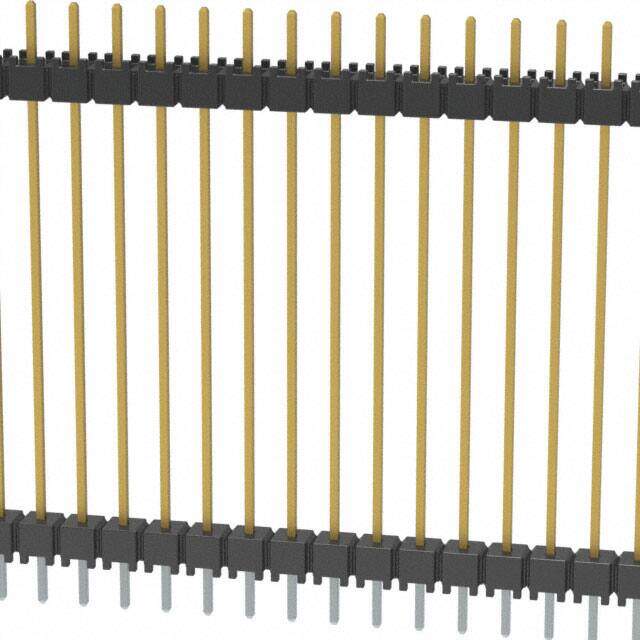

DW-40-14-F-S-1200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Rectangular Connector Stacker
PDF
/
Inventory: 5559
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Tail 0.110 2.794mm
Contact Finish Thickness - Post (Mating) 3.00μin 0.076μm
Length - Post (Mating) 0.120 3.048mm
Length - Overall Pin 1.430 36.322mm
Length - Stack Height 1.200 30.480mm
Technical
Contact Finish - Post (Mating) Gold
UL Flammability Code 94V-0
Contact Gender MALE
Total Number of Contacts 40
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 1
Color Black
Number of Positions 40
Connector Type BOARD STACKING CONNECTOR
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series Flex Stack, DW
Packaging Bulk
Physical
Mounting Type Through Hole
Supply Chain
Factory Lead Time 3 Weeks
