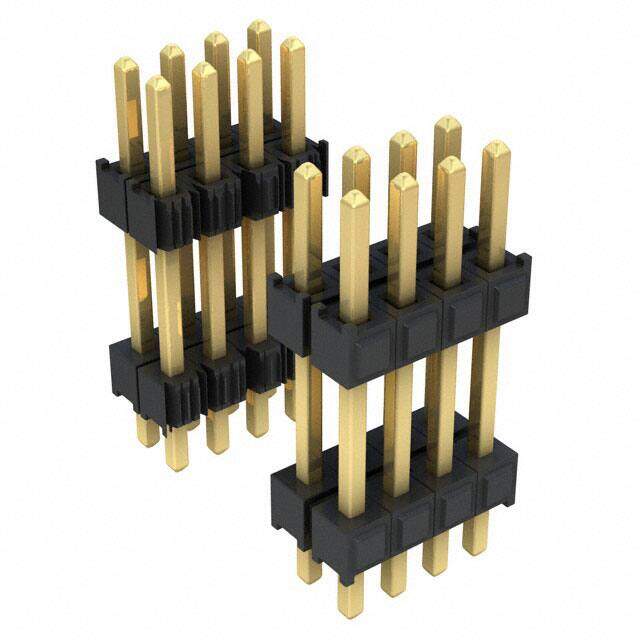

DW-32-09-G-D-300
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
CONN HEADER 64POS DUAL 2.54MM AU
PDF
/
Buying Options
Total Price: USD $67.73
Unit Price: USD $67.7293
≥1 USD $67.7293
≥10 USD $55.5731
≥100 USD $53.8365
≥500 USD $52.0999
≥1000 USD $50.3633
Inventory: 1033
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Tail 0.110 2.794mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Post (Mating) 0.320 8.128mm
Length - Overall Pin 0.730 18.542mm
Length - Stack Height 0.300 7.620mm
Length 18.542mm
Technical
Row Spacing 0.100 (2.54mm)
Contact Finish - Post (Mating) Gold
Total Number of Contacts 64
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 2
Color Black
Number of Positions 64
Connector Type BOARD STACKING CONNECTOR
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Flex Stack, DW
Published 2000
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 3 Weeks
