DW-21-07-T-S-200-002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description

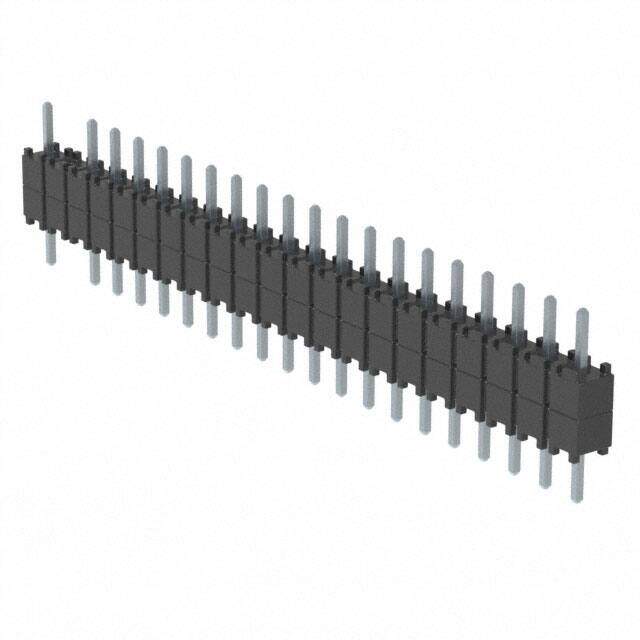

Conn Board Stacker HDR 21 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 1698
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Tail 0.110 2.794mm
Length - Post (Mating) 0.120 3.048mm
Length - Overall Pin 0.430 10.922mm
Length - Stack Height 0.200 5.080mm
Technical
Contact Finish - Post (Mating) Tin
Total Number of Contacts 20
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Gender Male
Number of Rows 1
Color Black
Number of Positions 21
Connector Type BOARD STACKING CONNECTOR
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Flex Stack, DW
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 3 Weeks
