DW-12-12-F-D-697
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 24 POS 2.54mm Solder ST Thru-Hole Automotive Bulk
PDF
/
Inventory: 4804
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Length - Post (Mating) 0.223 5.664mm
Contact Finish Thickness - Post (Mating) 3.00μin 0.076μm
Length - Tail 0.110 2.794mm
Length - Overall Pin 1.030 26.162mm
Length - Stack Height 0.697 17.704mm
Length 30.48mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Technical
Row Spacing 0.100 (2.54mm)
Contact Finish - Post (Mating) Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
Depth 5.08mm
Orientation Straight
Total Number of Contacts 24
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 24
Connector Type BOARD STACKING CONNECTOR
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Flex Stack, DW
Published 2012
Packaging Bulk
Physical
Housing Material Polyester
Mounting Type Through Hole
Contact Material Bronze
Supply Chain
Factory Lead Time 4 Weeks

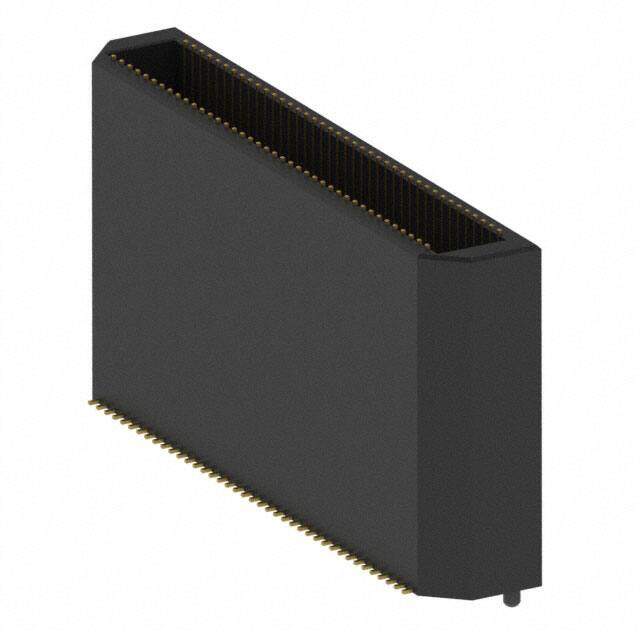

Alternative Model
