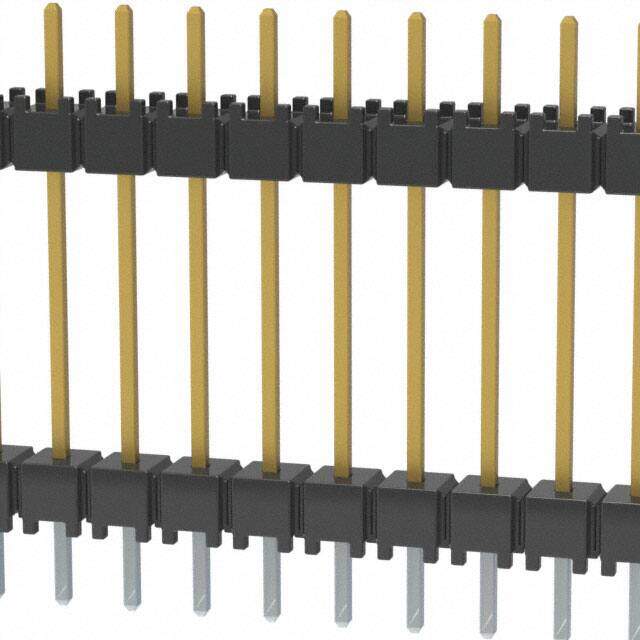

DW-12-10-S-S-600
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 12 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $7.98
Unit Price: USD $7.981119
≥1 USD $7.981119
≥200 USD $3.185095
≥500 USD $3.078751
≥1000 USD $3.026235
Inventory: 1616
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length - Tail 0.110 2.794mm
Contact Finish Thickness - Post (Mating) 30.0μin 0.76μm
Length - Post (Mating) 0.120 3.048mm
Length - Overall Pin 0.830 21.082mm
Length - Stack Height 0.600 15.240mm
Technical
Contact Finish - Post (Mating) Gold
Total Number of Contacts 12
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.69.40.40
Gender Male
Number of Rows 1
Color Black
Number of Positions 12
Connector Type BOARD STACKING CONNECTOR
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Flex Stack, DW
Published 2016
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 3 Weeks
