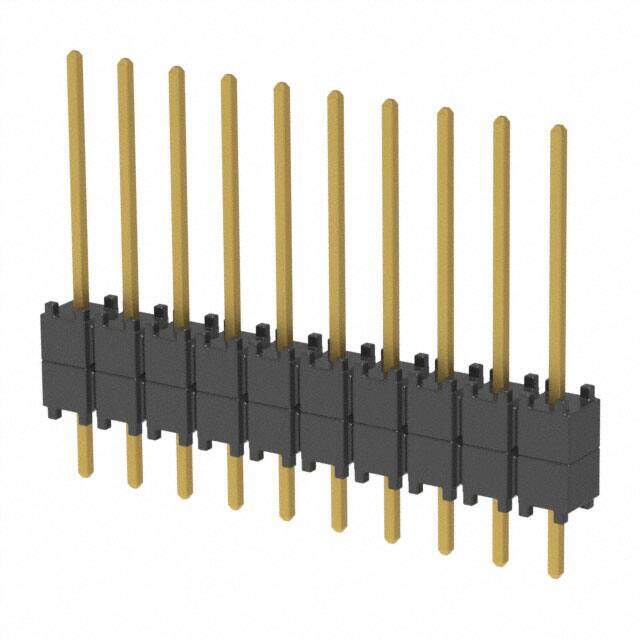

DW-10-09-G-S-200

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description Conn Board Stacker HDR 10 POS 2.54mm Solder ST Thru-Hole Bulk
PDF
/
Inventory: 7289
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type BOARD STACKING CONNECTOR
Number of Positions 10
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 1
Gender Male
HTS Code 8536.69.40.40
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 10
Orientation Straight
Depth 2.54mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Contact Finish - Post (Mating) Gold
Pbfree Code yes
JESD-609 Code e4
Series Flex Stack, DW
Packaging Bulk

Dimensions

Length 25.4mm
Length - Stack Height 0.200 5.080mm
Length - Overall Pin 0.730 18.542mm
Length - Post (Mating) 0.420 10.668mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Tail 0.110 2.794mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant

Physical

Housing Material Polyester
Mounting Type Through Hole
Contact Material Bronze

Supply Chain

Factory Lead Time 3 Weeks
