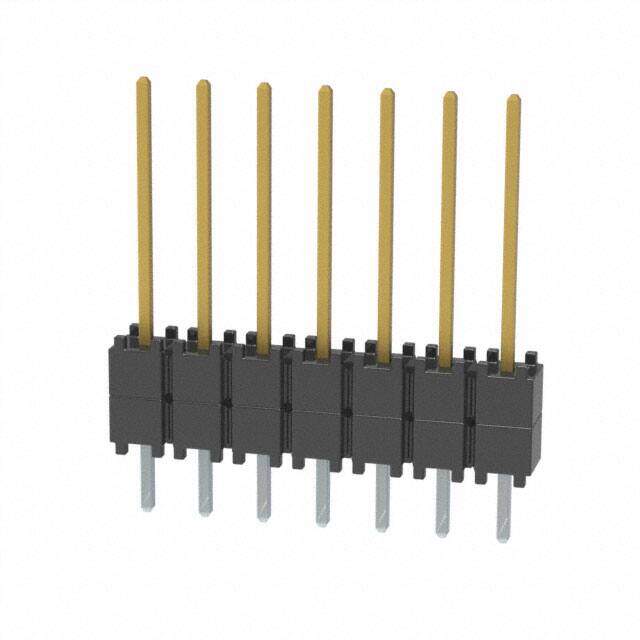

DW-07-09-L-S-200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
CONN BRD STACK .100" 7POS
PDF
/
Inventory: 2578
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Through Hole
Technical
Packaging Bulk
Series Flex Stack, DW
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type BOARD STACKING CONNECTOR
Number of Positions 7
Color Black
Number of Rows 1
HTS Code 8536.69.40.40
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 7
Contact Gender MALE
UL Flammability Code 94V-0
Contact Finish - Post (Mating) Gold
Dimensions
Length - Stack Height 0.200 5.080mm
Length - Overall Pin 0.730 18.542mm
Length - Post (Mating) 0.420 10.668mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Tail 0.110 2.794mm
Compliance
RoHS Status ROHS3 Compliant
