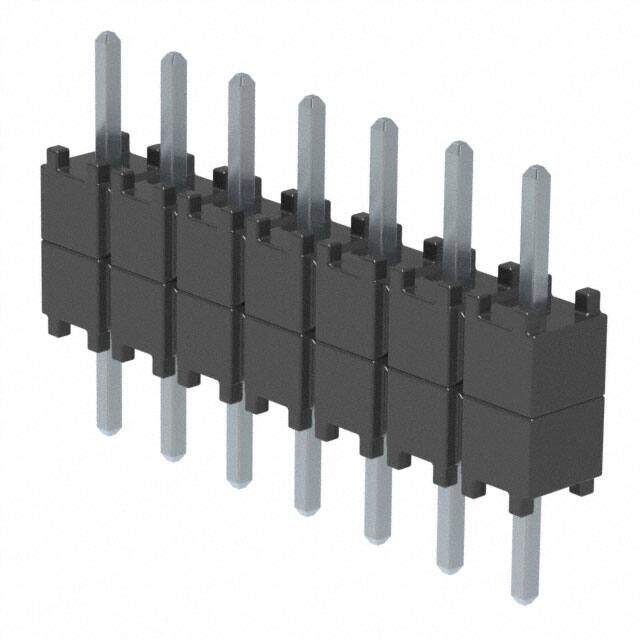

DW-07-07-T-S-200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 7 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.6952
≥1 USD $0.6952
≥10 USD $0.58784
≥100 USD $0.527912
≥500 USD $0.431957
≥1000 USD $0.383962
≥3000 USD $0.335966
Inventory: 704
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length - Tail 0.110 2.794mm
Length - Post (Mating) 0.120 3.048mm
Length - Overall Pin 0.430 10.922mm
Length - Stack Height 0.200 5.080mm
Technical
Max Current Rating 3A
Contact Finish - Post (Mating) Tin
UL Flammability Code 94V-0
Orientation Straight
Total Number of Contacts 7
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.69.40.40
Gender Male
Number of Rows 1
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 7
Connector Type BOARD STACKING CONNECTOR
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Flex Stack, DW
Published 2007
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 3 Weeks
