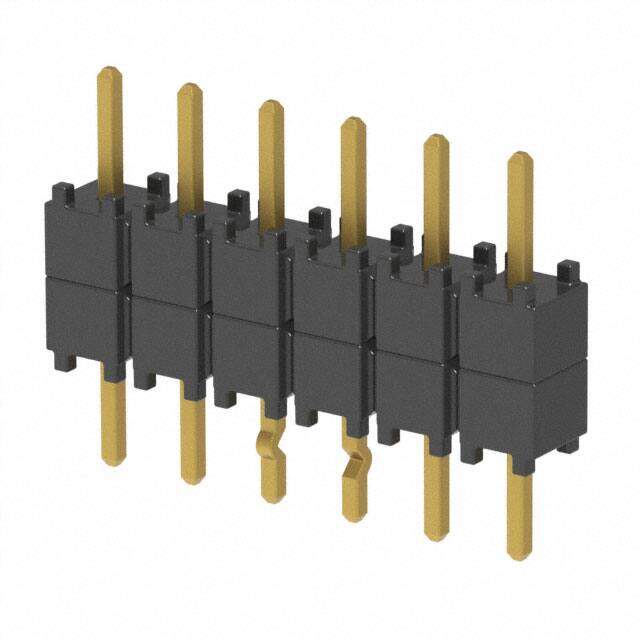

DW-06-07-G-S-200-LL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Rectangular Connector Board Spacer
PDF
/
Inventory: 964
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Packaging Bulk
Published 2016
Series Flex Stack, DW
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type BOARD STACKING CONNECTOR
Number of Positions 6
Color Black
Number of Rows 1
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 6
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish - Post (Mating) Gold
Dimensions
Length - Stack Height 0.200 5.080mm
Length - Overall Pin 0.430 10.922mm
Length - Post (Mating) 0.120 3.048mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Tail 0.110 2.794mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
