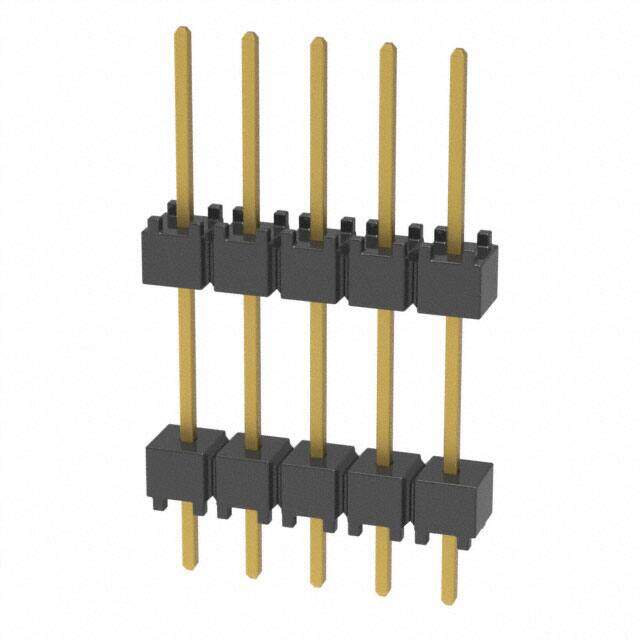

DW-05-10-G-S-450
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Rectangular Connector Stacker
PDF
/
Inventory: 5430
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length - Tail 0.110 2.794mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Post (Mating) 0.270 6.858mm
Length - Overall Pin 0.830 21.082mm
Length - Stack Height 0.450 11.430mm
Technical
Contact Finish - Post (Mating) Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
Total Number of Contacts 5
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 1
Color Black
Number of Positions 5
Connector Type BOARD STACKING CONNECTOR
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Flex Stack, DW
Published 2015
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 3 Weeks
